Product Introduction
This high-speed flute laminator is engineered for packaging and printing plants that require consistent accuracy, stable high-speed operation, and adaptability to different board conditions. The machine is built around servo control, precision alignment, and a controlled gluing system, ensuring reliable performance in demanding production environments.

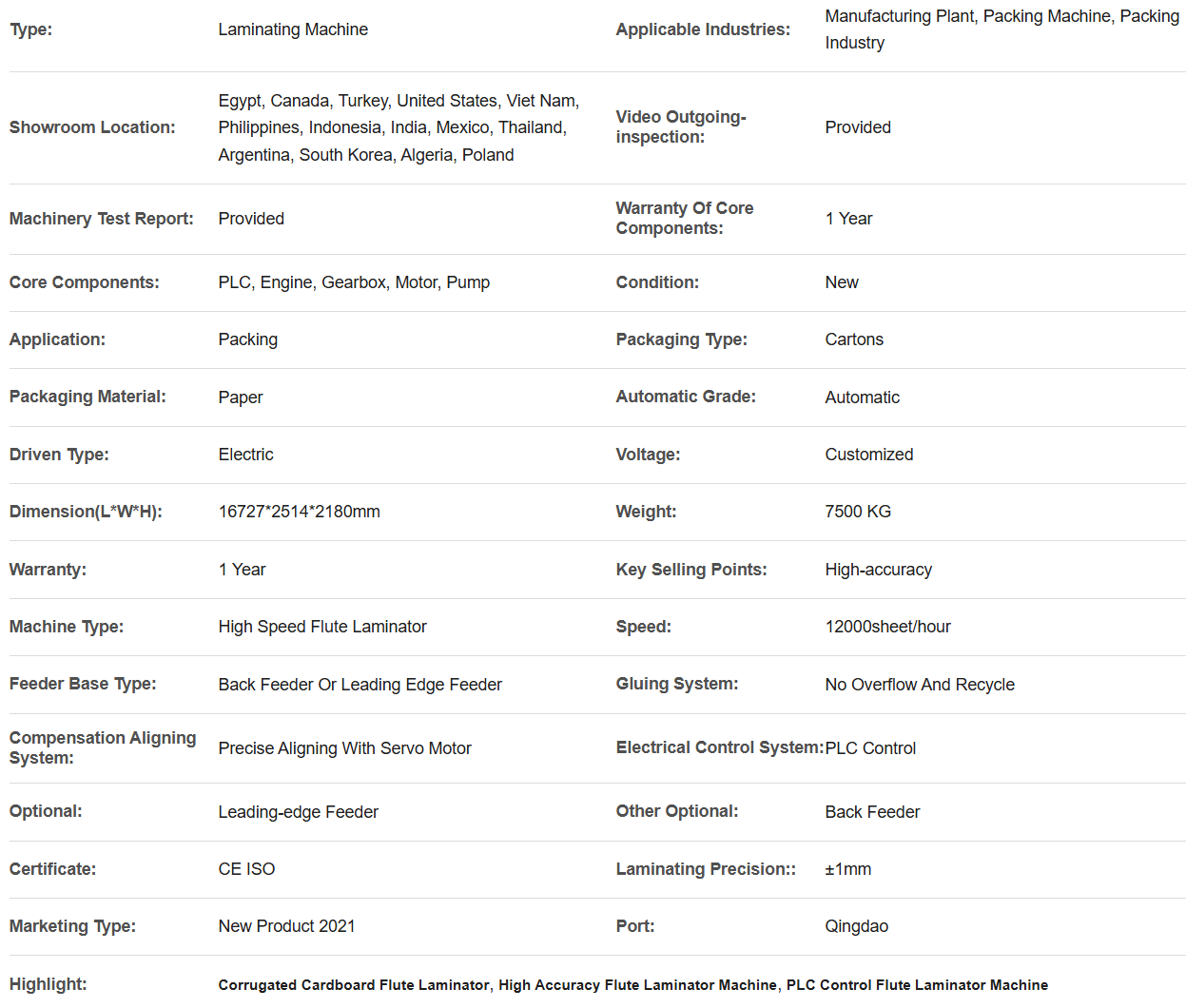

Product Details

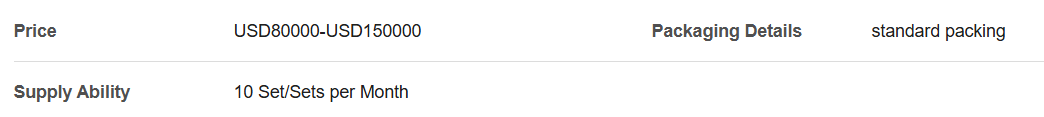

Payment & Shipping Terms
Main Features
High-Accuracy Lamination Structure
The machine is designed with a servo-driven compensation aligning system, allowing continuous correction of sheet positioning during operation. This ensures stable registration within ±1 mm, even at high speed.
Flexible Feeding Configuration
Available with both leading-edge feeder and back feeder options, the machine can be configured based on different material characteristics and production habits. This flexibility improves adaptability across various job types.
Dual Servo Bottom Feeding System
The bottom sheet feeding system is driven by two independent servo motors, ensuring smooth and stable transport of multi-ply, thick, or slightly warped corrugated boards without misalignment.
High-Speed Production Capability
With a maximum speed of 150 m/min and output up to 12,000 sheets per hour, the machine maintains stable performance under continuous production conditions.
Wide Material Range
Capable of processing A–N flute corrugated boards (2-ply, 3-ply, 5-ply), grey board, and cardboard up to 10 mm thickness, covering a broad range of packaging applications.
Precision Gluing System
The stainless steel gluing roller ensures even adhesive distribution. Equipped with glue level control, side glue stopper, and recirculation system, it prevents overflow and maintains consistent bonding quality.
Low E-Type Feeding Platform
The feeding section is designed for direct pallet loading, reducing manual handling and improving efficiency during material preparation and job switching.
PLC Control System with HMI Interface
The machine is controlled through a PLC system with real-time monitoring, fault detection, and production data recording, allowing operators to maintain control over the entire process.
Machine Advantages
Consistent Accuracy in Real Production
Unlike conventional machines that perform well only under ideal conditions, this system maintains stable alignment even with variable material quality.
Adaptability to Different Materials
The combination of flexible feeding options and servo-controlled transport allows the machine to handle a wide range of paper and board types without frequent adjustments.
Reduced Material Waste
Precise glue application and accurate alignment reduce rejects, saving both material and production cost.
Stable High-Speed Operation
The mechanical structure and servo system are designed for long production runs, minimizing downtime and maintaining output consistency.
Lower Maintenance Requirements
The transmission system distributes load efficiently, reducing wear on components and lowering maintenance frequency.
Improved Production Efficiency
By combining stable feeding, accurate alignment, and efficient gluing, the machine improves overall line productivity and reduces dependence on operator experience.
Practical for Scalable Production
Suitable for both medium and large-scale operations, the machine provides a balance between speed, precision, and operational cost, making it a practical upgrade for growing factories.
Product Description
Corrugated Cardboard Automatic High Speed Flute Laminator Machine
FAQ
Q1: What is the core positioning of this high-accuracy flute laminator?
A: It is designed for factories that prioritize precision and stability in high-speed production. The machine focuses on accurate registration, controlled gluing, and consistent output rather than just speed.
Q2: What level of accuracy can it achieve in real production?
A: The machine maintains lamination accuracy within ±1 mm under proper material conditions, which is critical for high-end printed packaging and tight registration jobs.
Q3: How does it maintain accuracy at high speed?
A: A servo-driven compensation aligning system continuously monitors sheet position. Any deviation is corrected in real time by adjusting the top sheet before bonding.
Q4: What makes the feeding system different from standard machines?
A: It offers both leading-edge feeder and back feeder configurations. This flexibility allows operators to select the most suitable feeding method based on paper type and job requirements.
Q5: How stable is the machine when handling warped or uneven boards?
A: The dual servo bottom feeding system ensures stable transport of warped, multi-ply, and heavy boards without vibration or misfeeding.
Q6: What is the actual production capacity?
A: The machine runs up to 150 m/min, reaching approximately 12,000 sheets per hour depending on sheet size and material quality.
Q7: How does the gluing system perform at high speed?
A: The precision roller system ensures uniform glue application. The design includes glue recirculation and side control to prevent overflow, even during continuous high-speed operation.
Q8: Does the machine help reduce glue waste?
A: Yes. The controlled application and recycling system keep glue consumption stable and minimize unnecessary loss.
Q9: What types of materials can it process?
A: It handles a wide range, including 2-ply, 3-ply, and 5-ply corrugated boards, grey board, and cardboard up to 10 mm thickness, covering most packaging applications.
Q10: How efficient is the feeding preparation process?
A: The low E-type piling table allows direct pallet loading, reducing manual handling and improving setup efficiency.
Q11: What kind of control system does the machine use?
A: A PLC-based control system with HMI interface provides real-time monitoring, fault alarms, and production data recording.
Q12: How does this machine ensure long-term stability?
A: Key components such as motors, gearboxes, and bearings are selected from established suppliers, ensuring durability and consistent performance.
Q13: What advantage does the transmission system offer?
A: The combination of gears and belts distributes load evenly, reducing wear, lowering noise, and extending service intervals.
Q14: How does it compare to lower-end laminators in terms of consistency?
A: Lower-end machines often show variation during long runs. This machine maintains stable alignment and bonding quality from start to finish.
Q15: Is the machine suitable for high-volume production environments?
A: Yes. Its structure is designed for continuous operation, making it suitable for factories running multiple shifts.
