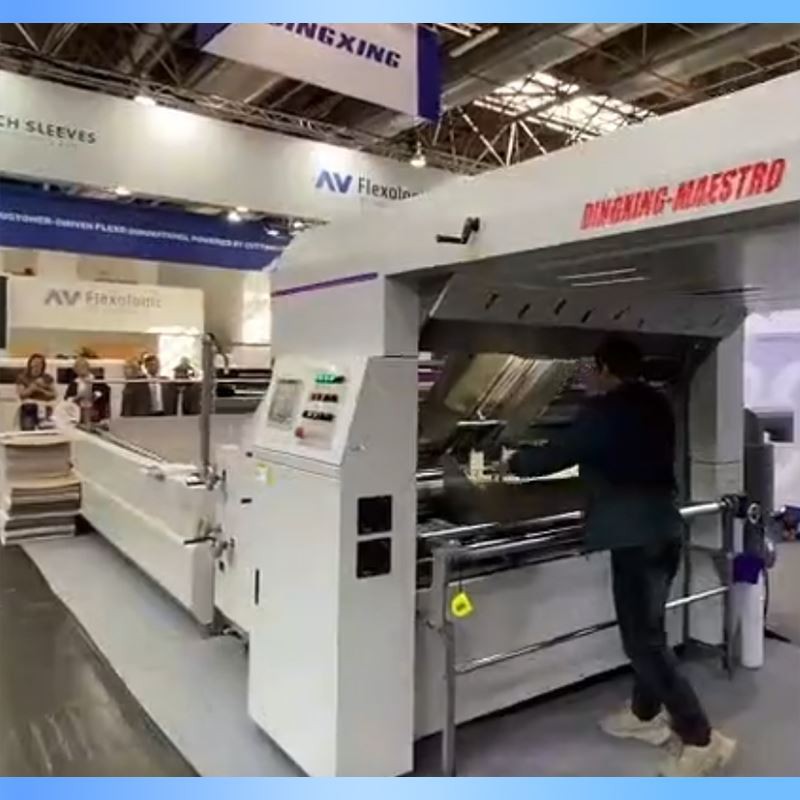

Product Overview
The DX-2100 High Lamination Accuracy Flute Laminator is engineered for manufacturers handling large-format, high-value corrugated packaging, where both precision and production stability are critical.
With a maximum sheet size of 2100 × 2100 mm, this model is positioned beyond standard laminators, offering enhanced control, improved alignment accuracy, and stable high-speed performance when processing oversized and heavy boards.
It is particularly suitable for operations requiring consistent lamination quality across long production runs and varying material conditions.

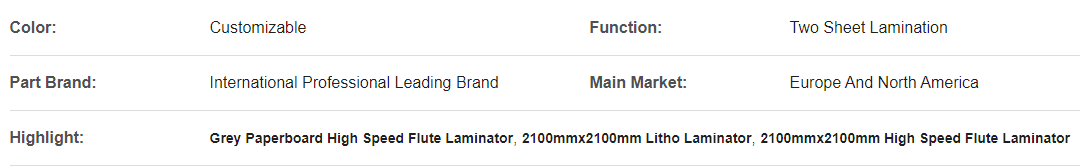

Product Details
Payment & Shipping Terms
Main Features
1. Large Format Capability up to 2100 × 2100 mm
The machine is designed to process extra-large sheets without compromising stability:
- Suitable for industrial cartons and oversized packaging
- Maintains consistent feeding and alignment at full width
- This capability clearly differentiates it from 1450/1650 class machines.
2. Leading-Edge Litho Feeding System
The top sheet is fed by a leading-edge suction feeder, providing:
- Stable sheet pickup at high speed
- No need for frequent adjustment between job changes
- Improved control of thin and large-format sheets
- This system ensures reliable feeding performance across different paper types.
3. Servo Shaftless Back Feeder Integration
The combination of leading-edge feeder and servo shaftless system allows:
- Smooth sheet overlapping
- Accurate feeding timing
- Continuous high-speed operation without interruption
4. Dual Servo Bottom Feeding System
The bottom sheet feeding section uses dual servo motors to achieve:
- Precise synchronization
- Stable handling of warped or heavy boards
- Smooth transport of multi-ply corrugated materials
5. High-Speed Production with Stability
- Maximum speed up to 150 m/min
- Output up to 12,000 sheets/hour (based on sheet length)
- The system is designed to maintain stable performance at high speed, not just peak values.
6. High-Accuracy Compensation Aligning System
A multi-sensor detection system combined with servo correction ensures:
- Real-time monitoring of sheet position
- Automatic deviation correction
- Consistent top-to-bottom alignment
This allows the machine to maintain high lamination accuracy even under demanding conditions.
7. Precision Gluing System
The gluing section is engineered for uniform and controlled adhesive application:
- High-precision coating rollers
- Automatic glue level control
- Side glue stopper to prevent overflow
- Glue recirculation system
This ensures clean bonding and efficient glue usage, even at high speed.
8. Wide Material Compatibility
Top sheet: 120–600 gsm
Bottom sheet: 0.5–10 mm thickness
Suitable for:
- Single-face flute (A–N)
- 3-ply, 5-ply, and 7-ply corrugated boards
- Grey paperboard and heavy-duty carton materials
9. PLC Control and Intelligent Monitoring
The machine is equipped with a PLC control system and HMI interface, providing:
- Real-time production monitoring
- Fault detection and alarm system
- Production data recording
10. Efficient Feeding and Material Handling
The low E-type piling table supports:
- Direct pallet feeding
- Faster job changeover
- Reduced manual handling
Optional rail pre-loading further improves workflow efficiency.
Machine Advantages
1. Superior Control for Large Sheets
Maintains stability and accuracy when processing oversized boards, where standard machines typically struggle.
01
2. High Accuracy Under High Speed
Combines servo control and sensor-based alignment, ensuring precision is maintained even during continuous high-speed production.
02
3. Strong Performance with Heavy and Multi-Ply Boards
Handles thick, multi-layer materials without affecting feeding stability or alignment consistency.
03
4. Reduced Waste and Higher Yield
Accurate feeding and alignment reduce:
- Misaligned sheets
- Glue waste
- Rework and rejection
04
5. Reliable Long-Term Operation
Heavy-duty structure and optimized systems ensure:
- Stable operation over long shifts
- Reduced maintenance requirements
- Consistent production output
05
Product Description
DX-2100 HIGH LAMINATION ACCURACY FLUTE LAMINATOR
|
Model/Modelo |
DX-1450 |
DX-1650
|
DX-1650XL
|
DX-2050 |
DX-2100 |
|
Max. SheetSize(WXL) Tamaño máximo (WXL) |
1450mmx1450mm (57'x57') |
1650mmx1450mm (65'x57') |
1650mmx1650mm (65'x65') |
2050mmx1650mm (817'x65') |
2100mmx2100mm (83x83') |
|
Min. Sheet Size(WXL) Tamaño mínimo de tabla |
400mmx400mm (16'x16') |
400mmx400mm (16'x16') |
400mmx400mm (16'x16') |
550mmx450mm (21'x18') |
550mm*450mm (22x18') |
|
Thickness of Upper Paper Grosor del papel |
120~600gsm
|
|
|
||
|
Thickness of Bottom Paper Grosor de fondo |
0.5-10mm A-N Flute single layer/3 layers/5 layers /7 layers Corrugate board, Grey Board and Board Flauta A-N de una capa / 3 capas / 5 capas / 7 capas Tablero corrugado, tablero gris y tablero |
||||
|
Max. Speed Velocidad máxima |
150m/min (Subject to board quality and specification) |
||||
|
Laminating Precision Precisión de laminado |
±1.5mm |
±1.5mm |
±1.5mm |
±1.5mm |
±2mm |
|
Power Poder |
200V/-380V3-25HP |
200V/-380V3-25HP |
200V/-380V3-25HP |
200V/-380V3-25HP |
200V/-380V3-25HP |
FAQ
Q1: What makes the DX-2100 different from standard laminators?
A:The biggest difference is format capability. This machine handles up to 2100 × 2100 mm, which is beyond the range of most laminators in the market.
Q2: Why is large format capability important?
A:Because large cartons and industrial packaging require stable handling of big sheets. Smaller machines struggle with alignment and feeding at this size.
Q3: What is the core strength of this machine?
A:It combines large format, high speed, and stable accuracy - three factors that are rarely achieved together.
Q4: How fast can it run in production?
A:Up to 150 m/min, with practical output reaching around 12,000 sheets per hour depending on sheet size.
Q5: Can it maintain accuracy at high speed?
A:Yes. The system is designed to maintain ±1.5 mm alignment, even during continuous high-speed operation.
Q6: What ensures stable top sheet feeding?
A:The leading-edge litho feeder combined with servo shaftless system ensures smooth and synchronized sheet overlap.
Q7: Why is leading-edge feeding important?
A:It stabilizes the sheet from the front edge, reducing deviation and improving alignment before lamination begins.
Q8: How does it handle bottom sheet feeding?
A:With a dual servo-driven bottom feeder, ensuring precise timing and stable transport of large and heavy boards.
Q9: Can it process thick and multi-layer boards?
A:Yes. It supports:
● 0.5–10 mm thickness
● 3, 5, and 7-ply corrugated boards
Q10: How does it perform with grey board and heavy materials?
A:It is specifically designed for heavy-duty applications, maintaining stable feeding and alignment even with dense materials.
Q11: What controls the alignment during operation?
A:A multi-sensor compensation system with servo correction, which adjusts sheet position in real time.
Q12: How is glue applied at high speed?
A:Through a precision roller system with automatic glue control, ensuring even coating without overflow.
Q13: Does high speed affect glue consistency?
A:No. The glue system is synchronized with machine speed, maintaining stable application and bonding quality.
Q14: How is material loading handled?
A:The low E-type piling table allows direct pallet feeding, reducing manual handling and improving efficiency.
