QianDing(Hongtai) HTQF-1080Q-1 Automatic Stripping Machine
|
QUOTATION |
||||
|
Model |
1080Q-1 |
|||
|
QTY |
1 |
|||
|
Fob |
||||
|
Payment |
T/T |
|||
|
Port |
Ningbo |
|||
|
Remarks: 1. 30% for deposit,70% before delivery. 2. The quotation is valid for 1 months. |
||||

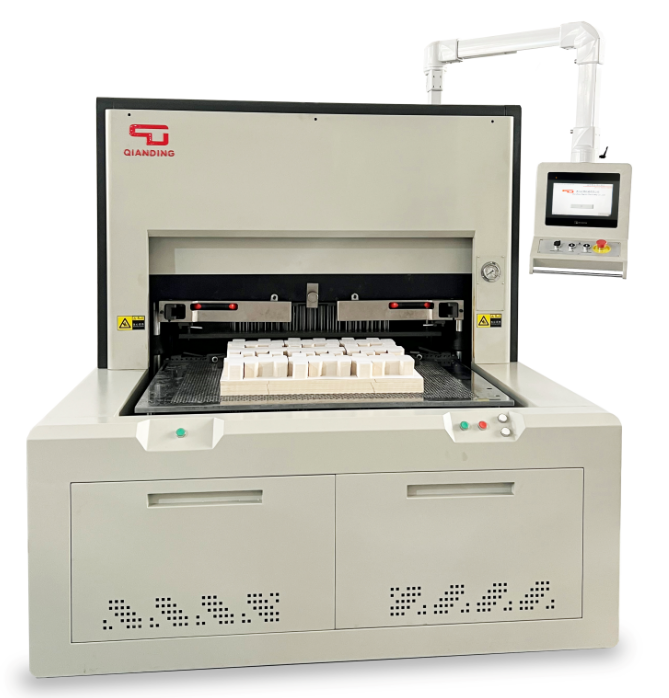

Model: HTQF-1080Q-1
Target Application: Die-cut products requiring automated scrap collection
Unique Features:
Automated Pick-Up: Reduces labor by automatically removing waste from the pile.
Precise Alignment: Servo motor and ball screw maintain stack integrity.

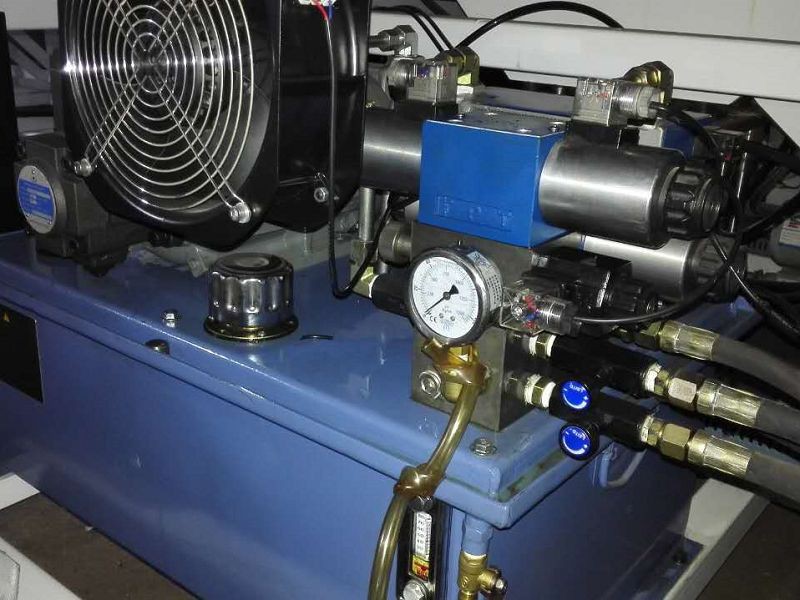

Flexible Pressure: Adjustable hydraulic system adapts to different material sizes and weights.
Specifications:
- Max sheet size: 1080 × 780 mm
- Max stack height: 60 mm
- Min cleaning diameter: 10 mm
- Removal speed: 2 cycles/min
Key Advantage: Perfect for production lines seeking hands-free operation with consistent accuracy.
|
Electric configuration |
|||
|
Item |
Model |
Brand |
Brand origin |
|
DC power supply |
NES-100-24 |
Schneider |
French |
|
Relay |
RXM2AB2BD(DC240V) |
Schneider |
French |
|
AC contactor |
LC1-0910 |
Schneider |
French |
|
Thermal overload relay |
3UA59(6.3-10A) |
Schneider |
French |
|
Button |
XB2BA11C |
Schneider |
French |
|
4-position switch |
XD2PA24CR |
Schneider |
French |
|
Knob |
XB2BD2C |
Schneider |
French |
|
proximity switch |
XS212BLNBL2C |
Schneider |
French |
|
Servo motor |
F-H08AF2 |
Evta |
China |
|
Thermal overload relay |
3UA5240-1K |
Siemens |
Germany |
|
Leakage protection airswitch of general power supply |
BKN-D16-3 |
GL |
South Korea |
|
Leakage protection airswitch of independent power supply |
BKN-D6-1 |
GL |
South Korea |
|
Touch screen |
10.4'' |
Weinview |
Taiwan |
|
Micro-computerized controller |
AFPXHC40-F |
Panasonic |
Japan |
|
Technical parameters |
|
|
model |
HTQF-1080Q |
|
Maximum format (mm) |
1080x780 |
|
Maximum stack height (mm) |
60 |
|
Maximum scale (mm) |
1080x780 |
|
Minimum cleaning diameter (mm) |
10 |
|
Removal speed (cycles/min) |
2 |
|
Maximum pressure (bar) |
70 |
|
Machine dimension (mm) |
1900X2100X2000 |
|
Machine weight (kg) |
3350 |
|
voltage |
380/50Hz |
|
otal power (kw) |
9 |
Three view dimension drawing of HTQF-1080Q-1
|
Tool cabinet |
|
|
Name: |
Quantity: |
|
Tape measure |
1 |
|
Push head |
1 |
|
Slotted screwdriver |
1 |
|
Cross screwdriver |
1 |
|
Screws and nuts |
Many |
|
Sponges |
Many |
|
Adjustable wrench |
1 |
|
Thimble mould |
A set |
|
Pressure plate |
14 |
|
Inner hexagon spanner |
A set |
|
Open end wrench |
1 |
FAQ
Q1: Why should we consider the HTQF-1080Q-1 for our factory?
A: Manual stripping is slow, inconsistent, and requires multiple operators. With this machine, one operator can handle tasks that used to require 3–5 people, reducing labor cost and human error immediately.
Q2: Can it handle small or delicate items like tags or paper cups?
A: Yes. The hidden servo motor with ball screw ensures precise pile positioning. Even small products down to 10 mm diameter are handled perfectly without misalignment or damage.
Q3: What types of products can it process?
A: It is suitable for a wide range of die-cut products: tags, labels, paper cups, medicine packages, wine boxes, cosmetic packaging, and more. One machine can cover multiple product lines without additional investment.
Q4: How fast is the HTQF-1080Q-1?
A: The machine operates at 2 cycles per minute, but with controlled precision. Every strip is clean and accurate, so product quality is maintained even during high-volume production.
Q5: How easy is it to switch between different product formats?
A: The stripping needles (rods) are quick-change. Switching between different molds or patterns takes only a few minutes, drastically reducing downtime compared to traditional machines.
Q6: What about maintenance and machine longevity?
A: The machine features a centralized automatic lubrication system, which keeps moving parts maintained continuously. This extends service life, reduces unexpected breakdowns, and saves on maintenance costs.
Q7: How safe is it for operators?
A: A safety fence protects staff during operation. The visual buttons and touchscreen ensure no accidental activation. Even new employees can operate the machine safely after minimal training.
Q8: How easy is it to operate?
A: The 10.4-inch touchscreen panel is intuitive. Operators can quickly set job parameters, monitor performance, and make adjustments without needing specialized training.
Q9: What is the machine's size and power requirement?
A: Dimensions: 1900 × 2100 × 2000 mm, weight: 3350 kg. Voltage: 380V, 50Hz, total power: 9 kW. Compact enough for most factories, yet powerful and robust for high-volume production.
Q10: How does it handle different materials and sizes?
A: The adjustable hydraulic system allows precise pressure settings for different sheet sizes, weights, and material types, from thin paper tags to thicker cardboard boxes.
Q11: What about quality improvement?
A: The machine ensures clean edges, accurate alignment, and minimal product damage, reducing rejects and customer complaints.
