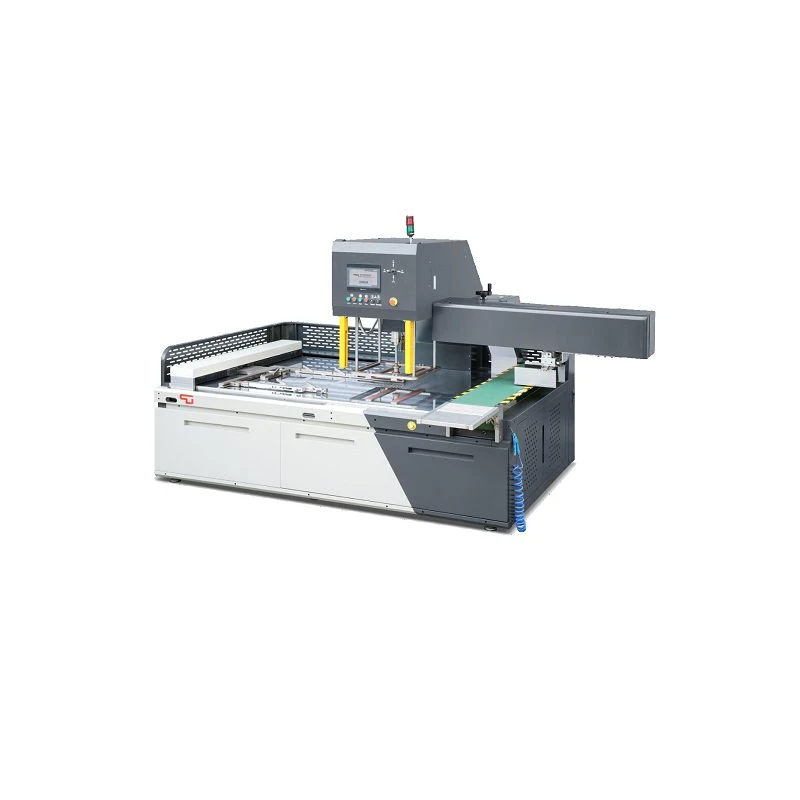

QianDing(Hongtai) HTQF-1080TR Automatic Stripping Machine
|
QUOTATION |
||||
|
Model |
HTQF-1080TR |
|||
|
QTY |
||||
|
Fob |
||||
|
Payment |
T/T |
|||
|
Port |
Ningbo |
|||
|
Remarks: 1. 30% for deposit,70% before delivery. 2. The quotation is valid for 1 months. |
||||
Model: HTQF-1080TR
In modern die-cutting production lines, manual waste removal is time-consuming and prone to errors. The HTQF-1080TR addresses this challenge by integrating a precision manipulator arm and rotary head, automating the removal of waste material. This system significantly improves efficiency while maintaining consistent product quality. It is ideal for tags, labels, paper cups, medicine packaging, wine boxes, cosmetics packaging, and other die-cut products.
Key Features
- Manipulator Arm Automation:
Automatically grabs waste with a clamping range of 30–180 mm and a weight capacity of 50–1500 g. Empty running speed reaches up to 50 m/min, ensuring fast and accurate operation.
- Rotary Head Precision:
Adjustable rotation from 0–180° at 10–80°/second. Allows flexible handling of products with varying shapes and sizes, ensuring consistent removal accuracy.
- Adjustable Hydraulic System:
Provides precise pressure control to accommodate different material thicknesses, sizes, and weights.
- Hidden Servo Motor with Ball Screw:
Ensures accurate pile positioning, minimizing errors and maintaining stack precision.
- Centralized Automatic Lubrication:
Regular lubrication extends machine life and reduces maintenance downtime.
- Visual Operation Panel:
Touch-screen interface with clear button layout reduces the risk of operator error and simplifies programming.
- Safety Protection:
Equipped with an operation-side safety fence to protect personnel during machine operation.
|
Electric configuration |
|||
|
Item |
Model |
Brand |
Brand origin |
|
DC power supply |
NES-100-24 |
Schneider |
French |
|
Relay |
RXM2AB2BD(DC240V) |
Schneider |
French |
|
AC contactor |
LC1-0910 |
Schneider |
French |
|
Thermal overload relay |
3UA59(6.3-10A) |
Schneider |
French |
|
Button |
XB2BA11C |
Schneider |
French |
|
4-position switch |
XD2PA24CR |
Schneider |
French |
|
Knob |
XB2BD2C |
Schneider |
French |
|
proximity switch |
XS212BLNBL2C |
Schneider |
French |
|
Servo motor |
F-H08AF2 |
Evta |
China |
|
Thermal overload relay |
3UA5240-1K |
Siemens |
Germany |
|
Leakage protection airswitch of general power supply |
BKN-D16-3 |
GL |
South Korea |
|
Leakage protection airswitch of independent power supply |
BKN-D6-1 |
GL |
South Korea |
|
Touch screen |
10.4'' |
Weinview |
Taiwan |
|
Micro-computerized controller |
AFPXHC40-F |
Panasonic |
Japan |
|
Machine technical parametrs |
|
|
Model |
HTQF-1080TR |
|
Max sheet size (X) mm |
1080 |
|
Max sheet size (Z) mm |
780 |
|
Min sheet size (X) mm |
650 |
|
Min sheet size (Z) mm |
450 |
|
Max pile height mm |
100 |
|
Min pile height mm |
40 |
|
Work table height mm |
850 |
|
Max product size to be punched out |
450*450 |
|
Min. product size to be punched out |
30*30 |
|
Stripping speed times/min |
15-22 |
|
Max. force (bar) |
70 |
|
Manipulator arm technical parameters |
|
|
Model |
HTQF-1400 (for 1080R) |
|
Trip |
1400 mm |
|
Clamping range |
30-180 mm |
|
Clamping weight |
50 -1500 g |
|
Empty running speed |
5-50 m/minute |
|
Air source |
4-7 bar |
|
Air consumption |
1 L/min |
|
Power supply voltage |
220V, 50HZ |
|
Power consumption |
0.4KW |
|
Net weight |
200 kg |
|
Rotating mould technical parameters |
|
|
Model |
HTQF-1080T |
|
Trip |
0-180 degrees |
|
Rotating speed |
10-80 degree/second |
|
Air consumption |
1 L/min |
|
Air source |
4-7 bar |
|
Power supply voltage |
220V, 50HZ |
|
Power consumption |
0.75KW |
|
Machine installation data |
|
|
Model |
HTQF-1080TR |
|
Machine width mm |
3470 |
|
Machine depth mm |
2610 |
|
Machine height mm |
1930 |
|
Net weight kg |
2200 |
|
Air source Bar |
4-7 |
|
Air consumption L/min |
4 |
|
Power supply voltage |
360V-420V,50/60HZ |
|
Power consumption A |
4.6 |
|
Insurance current A |
10 |
|
Input power |
3hPE |
Three view dimension drawing of HTQF-1080R (Including manipulator arm)
|
Tool cabinet |
|
|
Name: |
Quantity: |
|
Tape measure |
1 |
|
Push head |
1 |
|
Slotted screwdriver |
1 |
|
Cross screwdriver |
1 |
|
Screws and nuts |
Many |
|
Sponges |
Many |
|
Adjustable wrench |
1 |
|
Thimble mould |
A set |
|
Pressure plate |
14 |
|
Inner hexagon spanner |
A set |
|
Open end wrench |
1 |
FAQ
Q1: Who really needs this machine?
A:Any factory doing die-cutting for packaging. If your staff spends hours stripping waste manually, or your output quality is inconsistent, this machine isn't just convenient-it's necessary.
Q2: What products can it handle?
A:Everything from cigarette boxes, pharmaceutical packages, cosmetic cartons, tags, to paper cups. Basically, any die-cut product where clean waste removal is crucial.
Q3: How much labor does it save?
A:A lot. What used to require 2–3 people can now be done by one operator. It's not just about cost; it's about freeing staff for other tasks.
Q4: Is it fast enough for high-volume production?
A:Yes. Depending on the product, it runs 15–22 cycles per minute, consistently. The key isn't just speed-it's stable, repeatable output without downtime.
Q5: How does it maintain precision?
A:We use a hidden servo motor combined with a ball screw system, ensuring every sheet is accurately positioned. No guesswork, no mistakes that waste materials.
Q6: Can it adapt to different sizes?
A:Absolutely. It handles sheets up to 1080 mm wide, and the stripping needles are adjustable for different product sizes. So small or large runs are both easy.
Q7: What about setup time between products?
A:Quick and simple. Changing needles and adjusting the hydraulic system takes minimal time. That's critical for factories running small batches or multiple SKUs daily.
Q8: Does it handle different materials?
A:Yes. Coated paper, paperboard, even light corrugated sheets-it adapts without damaging the material.
Q9: Is maintenance complicated?
A:Not at all. Automatic lubrication keeps key components running smoothly, extending the machine's life and reducing unexpected downtime.
Q10: What about operator training?
A:Very easy. Visual buttons and a touchscreen make operation intuitive. A new worker can learn quickly, so you're not dependent on one expert.
Q11: From a professional standpoint, what is the core value of your stripping machine?
A: The core value lies in process standardization. We convert a labor-dependent, variable stripping process into a controlled, repeatable, and measurable operation,which is essential for modern packaging production.
Q12: What production problem are you fundamentally solving for factory owners?
A: We address three critical issues: labor instability, inconsistent quality, and low post-die-cutting efficiency. These are common bottlenecks that directly impact delivery time and profitability.
Q13: In terms of productivity, what improvements can be expected?
A: Factories typically see a substantial increase in throughput, as the machine operates continuously at a stable speed, eliminating delays caused by fatigue, staffing shortages, or inconsistent manual performance
