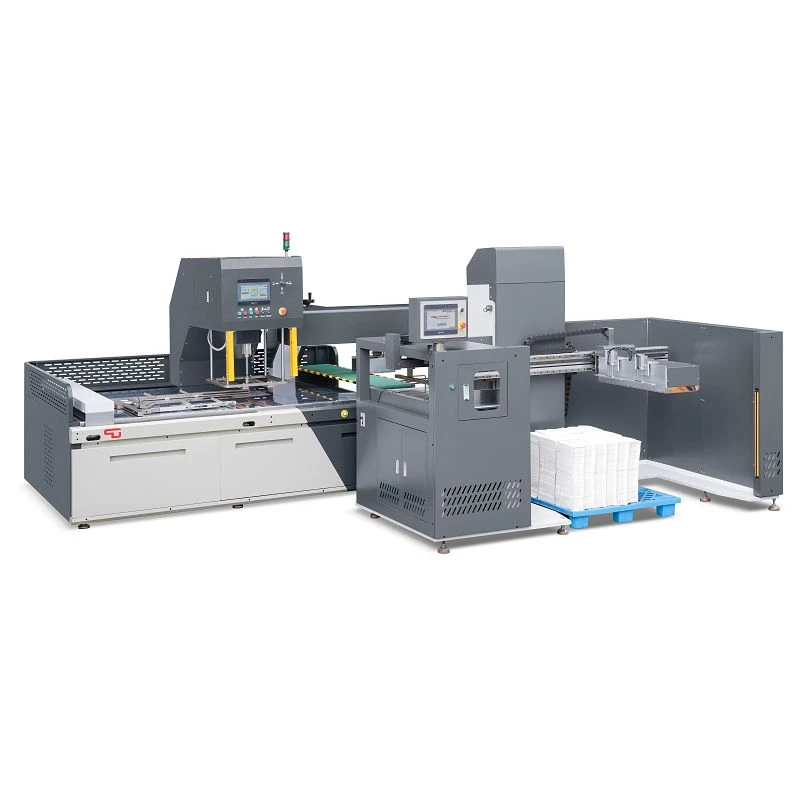

QianDing(Hongtai) HTQF-1080TRP Automatic Stripping Machine
To: Date:
|
QUOTATION |
||||
|
Model |
HTQF-1080TRP |
|||
|
QTY |
||||
|
Price |
||||
|
Payment |
T/T |
|||
|
Port |
Ningbo |
|||
|
Remarks: 1. 30% for deposit,70% before delivery. 2. The quotation is valid for 1 months. |
||||
Model: HTQF-1080TRP
Revolutionize Your Production Line
Manual waste removal after die-cutting slows down production and increases labor costs. The HTQF-1080TRP transforms this process with its automated manipulator arm, rotary head, and integrated palletizing system, delivering faster,
Why Choose HTQF-1080TRP?
- Full Automation
The manipulator arm picks up waste material and places it on the stack, while the rotary head handles irregular shapes efficiently. Paired with the palletizing system, waste management is fully automated from start to finish
- Precision and Speed
Manipulator clamping range: 30–300 mm
Clamping weight: 50–1800 g
Empty running speed: 5–50 m/min
Rotary head rotation: 0–180° at 10–80°/s
Achieve up to 22 stripping cycles per minute without compromising accuracy.
- Versatile & Adjustable
The
- Built to Last
Hidden servo motor and ball screw guarantee precise pile positioning. The automatic lubrication system reduces maintenance needs and extends service life.
- Safe and Easy to Operate
Touch-screen interface, visual buttons, and safety fencing protect operators while providing quick, intuitive programming.
|
Electric configuration |
|||
|
Item |
Model |
Brand |
Brand origin |
|
DC power supply |
NES-100-24 |
Schneider |
French |
|
Relay |
RXM2AB2BD(DC240V) |
Schneider |
French |
|
AC contactor |
LC1-0910 |
Schneider |
French |
|
Thermal overload relay |
3UA59(6.3-10A) |
Schneider |
French |
|
Button |
XB2BA11C |
Schneider |
French |
|
4-position switch |
XD2PA24CR |
Schneider |
French |
|
Knob |
XB2BD2C |
Schneider |
French |
|
proximity switch |
XS212BLNBL2C |
Schneider |
French |
|
Servo motor |
F-H08AF2 |
Evta |
China |
|
Thermal overload relay |
3UA5240-1K |
Siemens |
Germany |
|
Leakage protection airswitch of general power supply |
BKN-D16-3 |
GL |
South Korea |
|
Leakage protection airswitch of independent power supply |
BKN-D6-1 |
GL |
South Korea |
|
Touch screen |
10.4'' |
Weinview |
Taiwan |
|
Micro-computerized controller |
AFPXHC40-F |
Panasonic |
Japan |
|
Machine technical parametrs |
|
|
Model |
HTQF-1080TRP |
|
Max sheet size (X) mm |
1080 |
|
Max sheet size (Z) mm |
780 |
|
Min sheet size (X) mm |
650 |
|
Min sheet size (Z) mm |
450 |
|
Max pile height mm |
100 |
|
Min pile height mm |
40 |
|
Work table height mm |
850 |
|
Max product size to be punched out |
450*450 |
|
Min. product size to be punched out |
30*30 |
|
Stripping speed times/min |
15-22 |
|
Max. force (bar) |
70 |
|
Manipulator arm technical parameters |
|
|
Model |
HTQF-1400 (for 1080R) |
|
Clamping range |
30-300 mm |
|
Clamping weight |
50 -1800 g |
|
Empty running speed |
5-50 m/minute |
|
Air source |
4-7 bar |
|
Air consumption |
1 L/min |
|
Power supply voltage |
220V, 50HZ |
|
Power consumption |
0.4KW |
|
Net weight |
200 kg |
|
Rotating mould technical parameters |
|
|
Model |
HTQF-1080T |
|
Trip |
0-180 degrees |
|
Rotating speed |
10-80 degree/second |
|
Air consumption |
1 L/min |
|
Air source |
4-7 bar |
|
Power supply voltage |
220V, 50HZ |
|
Power consumption |
0.75KW |
|
Machine installation data |
|
|
Model |
HTQF-1080TRP |
|
Machine width mm |
5265 |
|
Machine depth mm |
3390 |
|
Machine height mm |
2090 |
|
Net weight kg |
3800 |
|
Air source Bar |
4-7 |
|
Air consumption L/min |
5 |
|
Power supply voltage |
380V,50/60HZ |
|
Power consumption A |
6.9 |
|
Insurance current A |
10 |
|
Input power |
3hPE |
|
Tool cabinet |
|
|
Name: |
Quantity: |
|
Tape measure |
1 |
|
Push head |
1 |
|
Slotted screwdriver |
1 |
|
Cross screwdriver |
1 |
|
Screws and nuts |
Many |
|
Sponges |
Many |
|
Adjustable wrench |
1 |
|
Thimble mould |
A set |
|
Pressure plate |
14 |
|
Inner hexagon spanner |
A set |
|
Open end wrench |
1 |
FAQ
Q1: Why should I even care about a stripping machine?
A:Because right now, every hour your staff is stripping waste manually, your factory is hemorrhaging money. Every mistake, every misalignment, every slowdown is cash flying out the door. Do you really want to keep paying for that?
Q2: Isn't manual work fine if we manage it carefully?
A:Fine? Let me put it bluntly: "fine" is losing tens of thousands of dollars a year without even realizing it. Fatigue, errors, inconsistency-your so-called control is an illusion.
Q3: How does your machine fix that?
A:It replaces human error with absolute precision.
15–22 cycles per minute, sheets up to 1080 mm, clean edges every single time. No excuses, no mistakes, no wasted material.
Q4: Sounds expensive. Is it really worth it?
A:Expensive? Compared to losing money every day, it's a bargain.
You save labor, reduce rejects, cut downtime-and it pays for itself faster than you think.
Q5: Can it handle different products?
A:Small or large, thick or thin, coated or cardboard, cigarette packs, cosmetic boxes, paper cups-if it's die-cut, this machine handles it cleanly. One setup, zero headaches.
Q6: How fast can we switch between jobs?
A:Needles and hydraulic settings can be changed in minutes. Factories with dozens of SKUs daily-this machine eats changeovers for breakfast.
Q7: But my team knows how to do it manually…
A:Sure, and they're costing you money every day they do it. One operator on this machine replaces two or three people, with zero mistakes. Your labor problem disappears overnight.
Q8: What about machine failures?
A:Automatic lubrication, robust design, reliable servo motor. This isn't a toy-it's built to run shift after shift without whining, breaking, or complaining.
Q9: My current machine is "good enough." Why switch?
A:Good enough is falling behind. While you're waiting, competitors are running faster, cleaner, cheaper. Every day without automation is a day you lose market share.
Q10: Is it complicated to operate?
A:No. Touchscreen, visual buttons, intuitive setup. New operators can run it in minutes. You don't need a magician to make this machine work.
Q11: Safety concerns?
A:Built-in safety fence and operation zone. One mistake avoided is thousands saved in downtime, insurance, or worse.
Q12: What makes your machine structure different from traditional ones?
A: We use a one-side independent standing structure, which saves space and makes operation, maintenance, and mold changes more convenient.
Q13: How do you ensure high precision during operation?
A: Our machines are equipped with hidden servo motors and ball screw systems, ensuring accurate positioning and stable performance throughout production.
Q14: Can the machine handle different materials and product sizes?
A: Yes, the adjustable hydraulic system allows flexible pressure control, making it suitable for various materials, sizes, and product weights.
