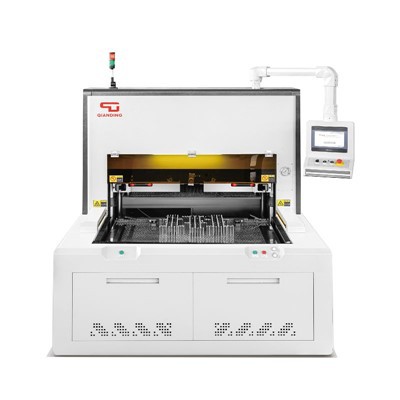

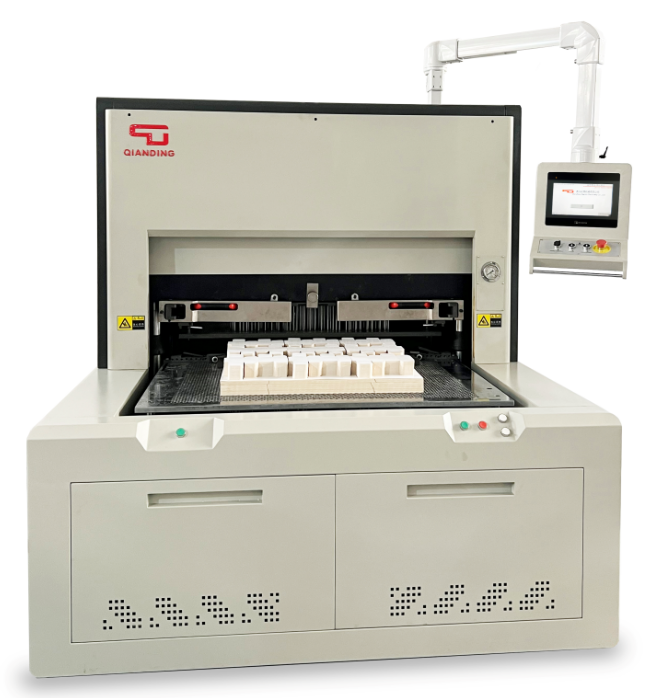

QianDing(Hongtai) HTQF-800Q Automatic Stripping Machine
|
QUOTATION |
||||
|
Model |
800Q |
|||
|
QTY |
1 |
|||
|
Fob |
||||
|
Payment |
T/T |
|||
|
Port |
Ningbo |
|||
|
Remarks: 1. 30% for deposit,70% before delivery. 2. The quotation is valid for 1 months. |
||||
Model: HTQF-800Q
Targeted Use: Medium-format paper sheets, labels, and packaging
Unique Selling Points:
Versatile Format Handling: Up to 800 × 620 mm sheets with minimum cleaning diameter of 30 mm.
Stable Performance: Adjustable hydraulic system accommodates varying thicknesses and weights.
Durability: Automatic lubrication system extends machine life.
Operator-Friendly: Touch-screen panel with visual buttons simplifies control.
Key Specs:
- Max stack height: 80 mm
- Removal speed: 1–3 cycles/min
- Maximum pressure: 70 bar
- Machine weight: 1900 kg
|
Electric configuration |
|||
|
Item |
Model |
Brand |
Brand origin |
|
DC power supply |
NES-100-24 |
Schneider |
French |
|
Relay |
RXM2AB2BD(DC240V) |
Schneider |
French |
|
AC contactor |
LC1-0910 |
Schneider |
French |
|
Thermal overload relay |
3UA59(6.3-10A) |
Schneider |
French |
|
Button |
XB2BA11C |
Schneider |
French |
|
4-position switch |
XD2PA24CR |
Schneider |
French |
|
Knob |
XB2BD2C |
Schneider |
French |
|
proximity switch |
XS212BLNBL2C |
Schneider |
French |
|
Servo motor |
F-H08AF2 |
Evta |
China |
|
Thermal overload relay |
3UA5240-1K |
Siemens |
Germany |
|
Leakage protection airswitch of general power supply |
BKN-D16-3 |
GL |
South Korea |
|
Leakage protection airswitch of independent power supply |
BKN-D6-1 |
GL |
South Korea |
|
Touch screen |
10.4'' |
Weinview |
Taiwan |
|
Micro-computerized controller |
AFPXHC40-F |
Panasonic |
Japan |
|
Technical parameters |
|
|
model |
HTQF-850Q |
|
Maximum format (mm) |
800x620 |
|
Maximum stack height (mm) |
80 |
|
Maximum scale (mm) |
780x30 |
|
Minimum cleaning diameter (mm) |
30 |
|
Removal speed (cycles/min) |
1-3 |
|
Maximum pressure (bar) |
70 |
|
Machine dimension (mm) |
1500X1700X1900 |
|
Machine weight (kg) |
1900 |
|
voltage |
380V 50Hz |
|
otal power (kw) |
4.5 |
|
Tool cabinet |
|
|
Name: |
Quantity: |
|
Tape measure |
1 |
|
Push head |
1 |
|
Slotted screwdriver |
1 |
|
Cross screwdriver |
1 |
|
Screws and nuts |
Many |
|
Sponges |
Many |
|
Adjustable wrench |
1 |
|
Thimble mould |
A set |
|
Pressure plate |
14 |
|
Inner hexagon spanner |
A set |
|
Open end wrench |
1 |
FAQ
Q1: Why should I upgrade to the HTQF-800Q right now?
A: Every day you rely on manual stripping, you're wasting labor and producing inconsistent products. With this machine, one operator can handle what used to need 3–4 people
Q2: How does it handle small or delicate items?
A: With a precision servo motor and ball screw, it positions each pile accurately. Whether it's tiny tags or lightweight labels, the HTQF-800Q ensures every piece comes out perfectly
Q3: Can it process multiple types of paper products?
A: Yes. From paper cups, medicine boxes, wine packaging, cosmetic boxes, tags, and labels
Q4: I have limited space. Will this fit?
A: Defione-side independent standing base design reduces floor space usage. Unlike traditional gantry-frame machines, it's compact but still allows easy access for operators to change molds or perform adjustments quickly.
Q5: How fast can it strip stacks, and does speed affect quality?
A: Stripping speed is 1–3 cycles per minute, but each cycle is controlled precisely. You won't have torn or misaligned products, even at maximum pile height of 80 mm. High quality is maintained without slowing production.
Q6: Changing products is always a headache. How is this machine different?
A: The stripping needles are quick-change, so switching molds or product formats takes just a few minutes, not half an hour. You save time on every batch change.
Q7: How reliable is it in daily operation?
A: Very reliable. It features centralized automatic lubrication, so moving parts are continuously maintained. This reduces unexpected downtime and extends the machine life significantly.
Q8: What safety features does it have for my operators?
A: A full safety fence protects operators, and the visual button layout plus touchscreen ensures there's no accidental operation. Even a new hire can safely run the machine with minimal training.
Q9: What's the easiest way to program it?
A: The 10.4-inch touchscreen is intuitive. Operators can set up jobs, adjust hydraulic pressure, and monitor operations without complex manuals or long training sessions.
Q10: What kind of materials can it handle?
A: Thin paper, cardboard, coated sheets, and light folding cartons. Maximum sheet size is 800×620 mm, minimum cleaning diameter is 30 mm, and maximum pile height is 80 mm. Flexibility means one machine can handle most of your die-cut products.
Q11: How much labor and cost does it save in practice?
A: On a medium-volume line, this machine can replace 2–3 operators, reduce rejects by 2–5%, and eliminate bottlenecks. That translates into thousands saved per month, and faster order fulfillment.
Q12: What makes this machine worth more than cheaper alternatives?
A: Cheaper machines often fail on precision, wear out faster, and can be dangerous for operators. HTQF-800Q uses premium components from Schneider, Siemens, Panasonic, ensuring long-term stability, safety, and consistent output.
