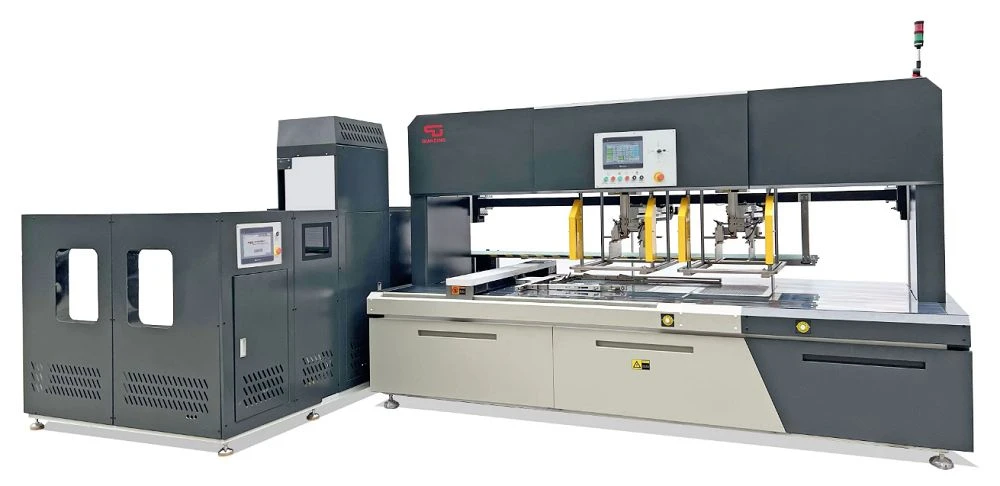

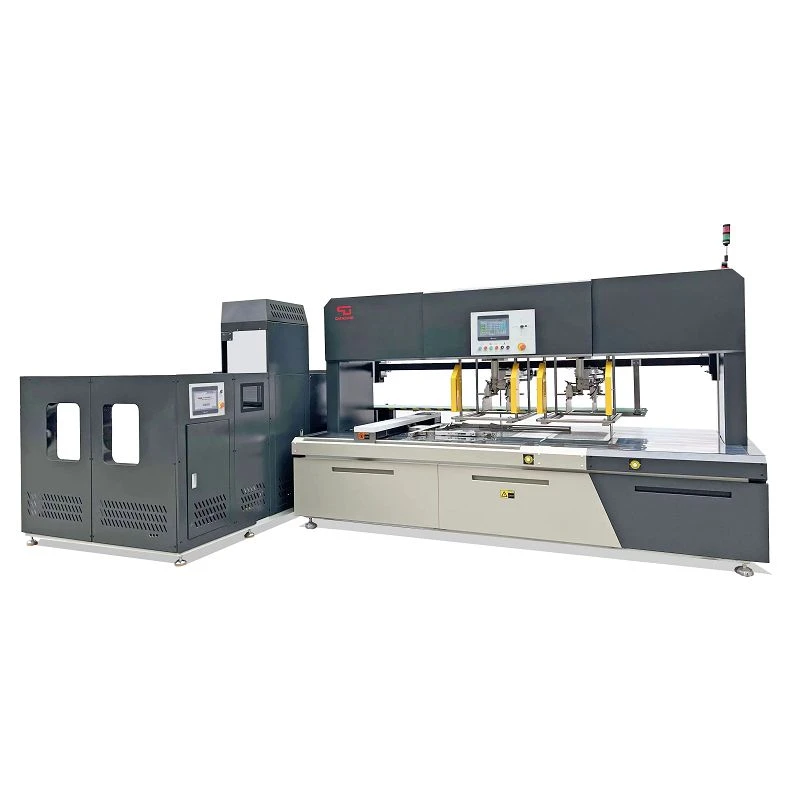

Model: HTQF-1080BRRP
The HTQF-1080BRRP is a precision-engineered automatic stripping machine designed for post-die-cutting applications. It is ideally suited for labels, tags, paper cups, pharmaceutical cartons, wine boxes, and cosmetic packaging, providing a reliable, high-efficiency solution for modern printing and packaging operations.
By automating the stripping process, this machine addresses the critical production challenges of labor dependency, inconsistent quality, and limited throughput, enabling factories to achieve both operational stability and superior product quality.
Optimized Structural Layout
Unlike conventional gantry-frame stripping machines, the HTQF-1080BRRP employs a one-side independent standing base for mold installation.
- Benefits include:
Reduced footprint for space-constrained production lines
Simplified mold installation and maintenance
Improved operator accessibility, resulting in faster setup and reduced downtime
- Precision Stripping with Stable Positioning
Equipped with a hidden servo motor and ball screw transmission, the HTQF-1080BRRP ensures precise and repeatable pile positioning.
This translates into:
Clean, uniform stripping edges
Reduced material defects
Minimized rework, critical for high-end packaging applications
Flexible Hydraulic Pressure Control
The adjustable hydraulic system allows operators to fine-tune stripping pressure according to material type, thickness, and product dimensions.
Suitable for thin labels, standard cartons, and thicker packaging materials
Prevents product deformation or damage while maintaining efficiency
- Rapid Changeover Capability
Stripping needles (rods) are designed for quick replacement, enabling fast adaptation to different layouts and product formats.
Advantages:
Reduced downtime between jobs
Higher machine utilization
Greater flexibility for multi-product production
- Durable & Low-Maintenance Operation
An automatic lubrication system continuously services key components, extending operational lifespan and reducing maintenance intervals.
Outcomes:
Lower wear and tear
Reduced unplanned downtime
Reliable long-term performance
- Intuitive Human-Machine Interface (HMI)
The visual control panel combined with a 10.4'' touchscreen provides intuitive machine operation and parameter programming.
Reduces training requirements for operators
Minimizes operational errors
Allows fast adaptation to different production runs
Enhanced Safety Design
A safety fence at the operator side ensures compliance with industrial safety standards, protecting personnel during continuous operation.
Production Benefits for Factories
From a production management perspective, the HTQF-1080BRRP enables you to:
Minimize reliance on manual labor
Achieve consistent, high-quality stripping
Increase daily output and machine utilization
Reduce waste, defects, and rework
Streamline production for multiple product types
|
Electric configuration |
|||
|
Item |
Model |
Brand |
Brand origin |
|
DC power supply |
NES-100-24 |
Schneider |
French |
|
Relay |
RXM2AB2BD(DC240V) |
Schneider |
French |
|
AC contactor |
LC1-0910 |
Schneider |
French |
|
Thermal overload relay |
3UA59(6.3-10A) |
Schneider |
French |
|
Button |
XB2BA11C |
Schneider |
French |
|
4-position switch |
XD2PA24CR |
Schneider |
French |
|
Knob |
XB2BD2C |
Schneider |
French |
|
proximity switch |
XS212BLNBL2C |
Schneider |
French |
|
Servo motor |
F-H08AF2 |
Evta |
China |
|
Thermal overload relay |
3UA5240-1K |
Siemens |
Germany |
|
Leakage protection airswitch of general power supply |
BKN-D16-3 |
GL |
South Korea |
|
Leakage protection airswitch of independent power supply |
BKN-D6-1 |
GL |
South Korea |
|
Touch screen |
10.4'' |
Weinview |
Taiwan |
|
Micro-computerized controller |
SYSMAC CP1E |
OMRON |
Japan |
|
Manipulator arm technical parameters |
|
|
Model |
HTQF-1400 (for 1080R) |
|
Trip |
1400 mm |
|
Clamping range |
30-300 mm |
|
Clamping weight |
50 -1500 g |
|
Empty running speed |
5-50 m/minute |
|
Air source |
4-7 bar |
|
Air consumption |
1 L/min |
|
Power supply voltage |
220V, 50HZ |
|
Power consumption |
0.4KW |
|
Net weight |
200 kg |
|
Machine technical parametrs |
|
|
Model |
HTQF-1080BRRP(Double worktable) |
|
Machine floor size mm |
5532×3652×2110 |
|
Maximum stacking size (x) × (y) mm |
1080×780 |
|
Maximum stacking height mm |
100 |
|
Minimum stacking height mm |
40 |
|
Minimum stacking size (x) × (y) mm |
500×400 |
|
Work table height mm |
850 |
|
Maximum sampling mm |
450×620 |
|
Minimum sampling mm |
30×30 |
|
Fastest pick up (times / min) |
15-22 |
|
Stack dimension mm |
850×1000×1300 |
|
Running speed cycles/min |
5-12 |
|
Max. force (bar) |
70 |
|
Air consumption L/min |
7 |
|
Maximum power |
8.5kw 380v |
|
Net weight |
4.8T |
|
Package size mm |
3900×2200×2250 2500×1800×1900 |
|
Gross weight |
5.3T |

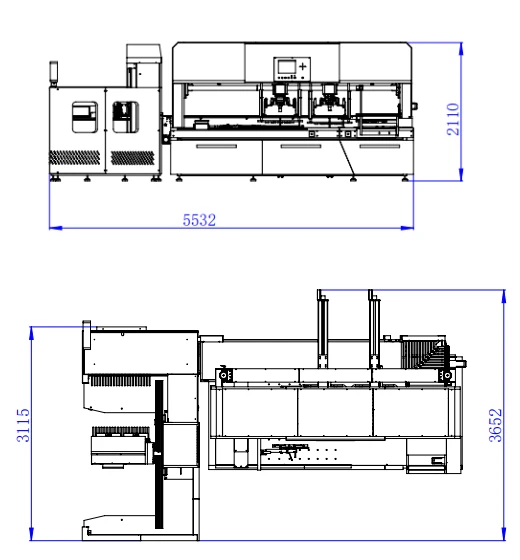

Dimension drawing of HTQF-1080BRRP (Including manipulator arm)
|
Tool cabinet |
|
|
Name: |
Quantity: |
|
Tape measure |
1 |
|
Push head |
1 |
|
Slotted screwdriver |
1 |
|
Cross screwdriver |
1 |
|
Screws and nuts |
Many |
|
Sponges |
Many |
|
Adjustable wrench |
1 |
|
Thimble mould |
A set |
|
Pressure plate |
A set |
|
Inner hexagon spanner |
A set |
|
Open end wrench |
1 |
FAQ
Q1: What tools are included with the machine?
A: The machine comes with a complete tool kit for installation and maintenance:
Tape measure, push head, screwdrivers, wrenches
Thimble molds, pressure plates, sponges
Screws, nuts, and other consumables
Q2: What is the primary benefit for packaging and printing factories?
A: This machine redefines post-die-cut stripping. It:
Reduces labor dependency
Improves product consistency and quality
Increases daily output
Minimizes defects, waste, and rework
Enables scalable and predictable production
Q3: How does it impact ROI?
A: By replacing multiple operators, reducing downtime, and improving throughput, factories often see measurable ROI within the first year. Increased production capacity allows more orders without hiring additional staff.
Q4: Why invest in HTQF-1080BRRP now?
A: Labor costs are rising, customers demand higher quality, and order complexity is increasing. Automation with HTQF-1080BRRP ensures your factory remains competitive, efficient, and capable of handling growing production requirements.
Q5: How does the machine ensure stripping accuracy?
A: A hidden servo motor combined with a precision ball screw system ensures accurate and repeatable pile positioning. This results in cleaner edges, fewer defects, and reduced rework-critical for high-end packaging.
Q6: Can the machine handle different product types and materials?
A: Yes. Its adjustable hydraulic system allows precise control of stripping pressure based on material type, size, and weight. It can handle thin labels, standard cartons, and heavier packaging without damaging the product.
Q7: How fast can operators switch between products?
A: The stripping needles (rods) are designed for rapid replacement. This minimizes downtime between jobs, allowing flexible production of multiple product formats.
Q8: How is maintenance handled?
A: An automatic lubrication system continuously maintains key components, reducing wear and extending service life. It also lowers the frequency of maintenance and minimizes unplanned downtime.
Q8: Can it handle different product sizes and materials?
A: Yes. The adjustable hydraulic system allows precise pressure control for various material types, sizes, and weights-from thin labels to thick cartons-without damaging products.
Q9: How quickly can operators switch between products?
A: Stripping needles (rods) can be replaced rapidly, enabling fast changeovers and minimizing downtime for multi-product production.
