1650*1450mm 5 Ply Flute Laminator Corrugated Cardboard Laminating Machine
1650*1450mm 5 Ply Flute Laminator
5Ply Corrugated Cardboard Laminating Machine
1650*1450mm Cardboard Laminating Machine
- Place of Origin:China
- Brand Name:DINGXING/DINGYI
- Certification:ISO/CE
- Model Number:DW-1650
Product Details
|
Max. Speed |
5000 Piece/Hour |
|
Top Sheet GSM |
120-600 |
|
Bottom Sheet GSM |
300-800 |
|
Lamination Accuracy |
±1.5mm |
|
Highlight |
1650*1450mm 5 Ply Flute Laminator, 5Ply Corrugated Cardboard Laminating Machine, 1650*1450mm Cardboard Laminating Machine |
Payment & Shipping Terms
|
Minimum Order Quantity |
1 |
|
Price |
USD80000-USD150000 |
|
Packaging Details |
Meteorological anti-rust film and steel bottom bracket |
|
Delivery Time |
70 DAYS |
|
Payment Terms |
L/C, D/A, D/P, T/T |
|
Supply Ability |
5 SET/MONTH |
Product Description

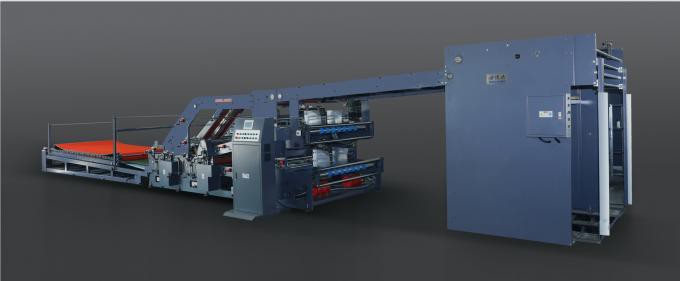

DW-1650 2+2+1 Flute Laminator
Sources of Main Parts
|
Name |
Place of Origin or Materials |
|
Main motor |
Taiwan(Joint venture) |
|
Lifting motor |
Taiwan(Joint venture) |
|
Decelerator |
Taiwan(Joint venture) |
|
Glue Pump |
Taiwan(Joint venture) |
|
Clutch & Brake |
Nikka from Taiwan |
|
Electrical drive |
Schneider from France, Fotek,Anly from Taiwan |
|
Belts |
Japan |
|
Air Blower |
Taiwan(Joint venture) |
|
Air pump |
Becker |
|
Servo motor |
Yaskawa |
Specifications:
Note: Specifications are subject to change without notice.
|
Model |
DW-1650 |
|
|
Max.Sheet Size(L*W, mm) |
1650*1450 |
|
|
Min.Sheet Size(L*W, mm) |
450*450 |
|
|
Thickness |
Litho |
120~800gsm |
|
Middle |
300-800gsm(single flute) |
|
|
Substrate |
300~800gsm (Up to 10mm Thick) A~N Single Layer/ 3/5Layers Corrugated Boards, Grey Paperboards and Cardboards |
|
|
Accuracy |
Within ±2 mm(Subject to Paper Quality and Specifications) |
|
|
Speed |
0 -5000sheets/hour(Subject to Paper Quality and Specifications) |
|
|
Power |
AC~380V(30HP) |
|
|

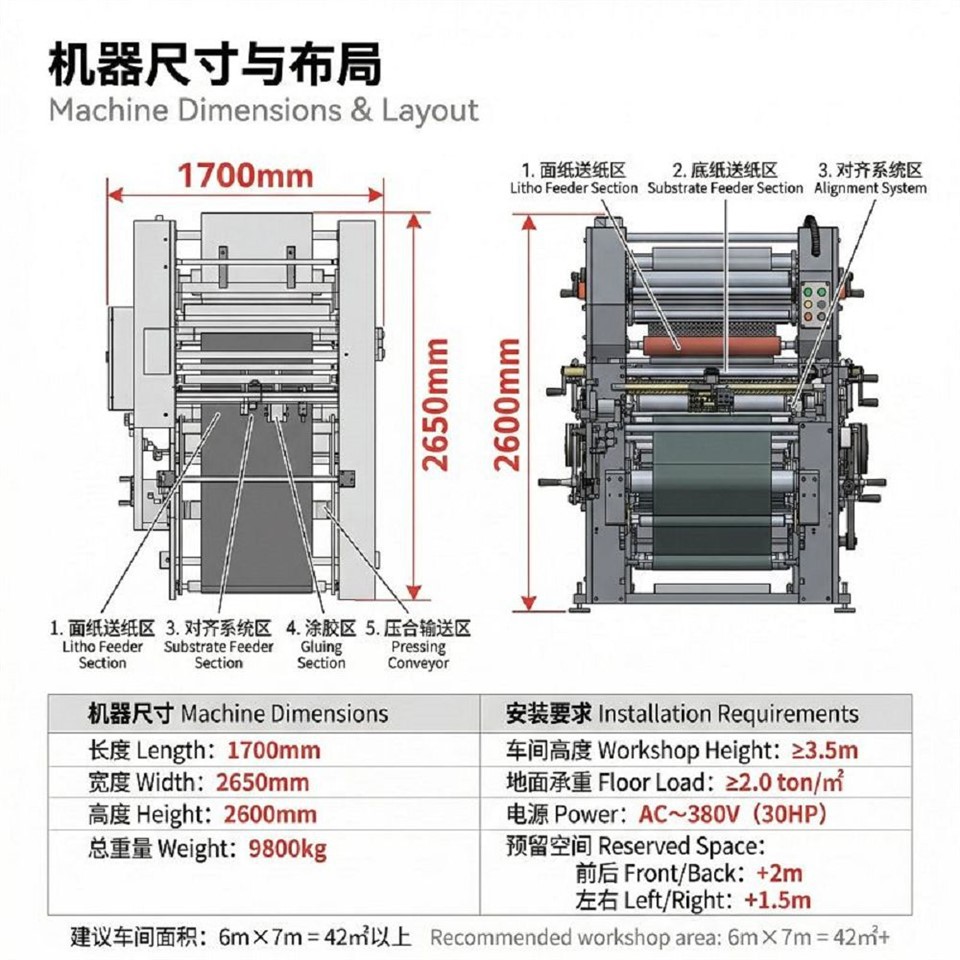

Dimension: L*W*H(MM) |
1700*2650*2600 |
|
|
Weight(KG) |
9800 |
|

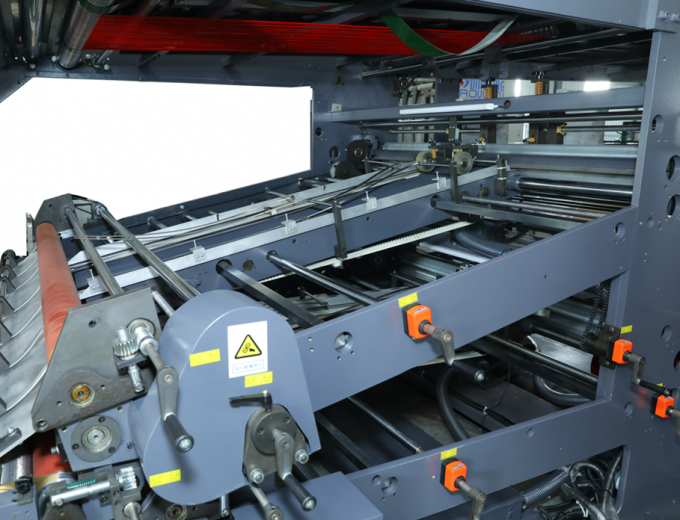

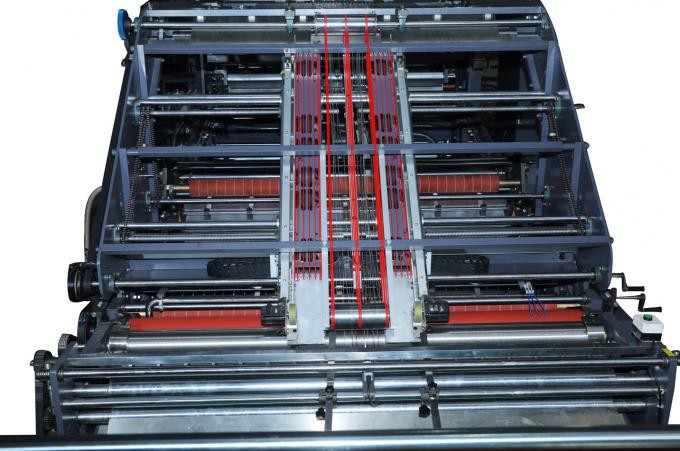

Litho Paper Feeder
- Equipped with 4 paper raising caps and 4 feeding caps to ensure smooth feeding.
- Paper pressing base with air blower and two sides sub-blower for wider paper.

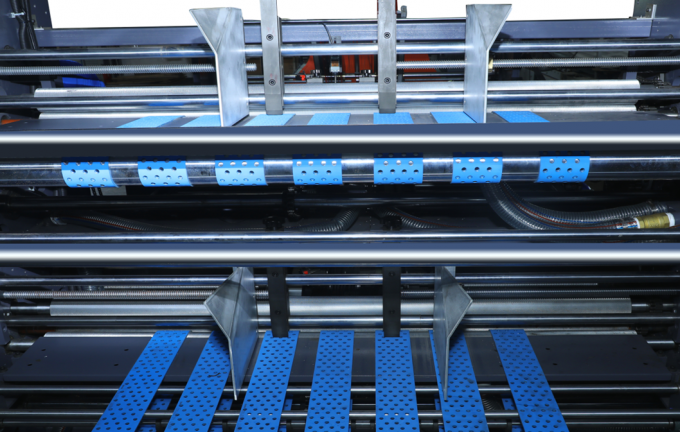

Substrate Two Paper Feeders
The corrugated paper is attached and goes through the Spring plates by suction belt and make the corrugated board delivery smoothly. Newly designed assistance belt helps to do the perfect suction belt feeding jobs, especially for 3/5 /7 ply.

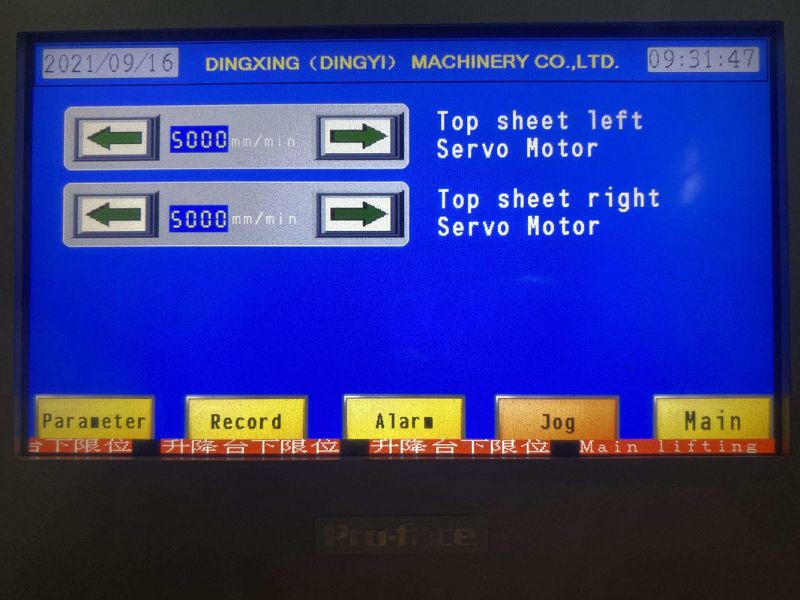

Servo motor Alignment and Timing System
Servo motor alignment for top paper and bottom 4ply corrugated boards. Multi sensors to monitor feeding position of the bottom sheets, the upper two servo motors (Japanese Yaskawa brand) adjust the top sheets synchronously to make accurate register during lamination.
Synchronous Register Belts. Bottom two corrugated boards are registered and aligned y synchronous pushing claw that makes accurate registration. There are buffer designed before pushing claw striking the paper that prevent paper edge from damage. The micro adjuster and bearing holding system allows accurate lamination of two substrate papers conveyed.

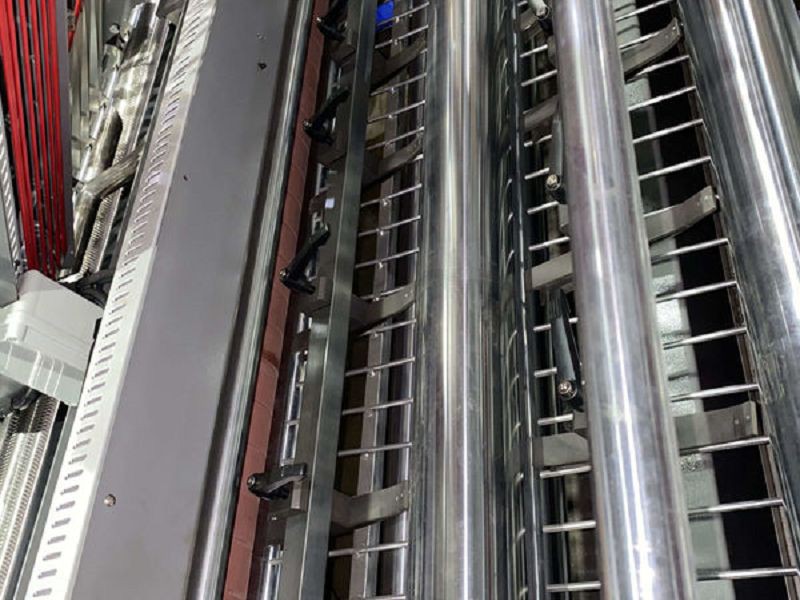

Gluing System
The adjustable glue roller system applies evenly on the corrugated board. The special chrome plated glue roller saves glue consumption with three sensors to prevent overflow. This recycles gluing system which refills the glue in the slot at both gluing rollers by electric glue controller. The gluing system prevents glue wasting for better performance of lamination.

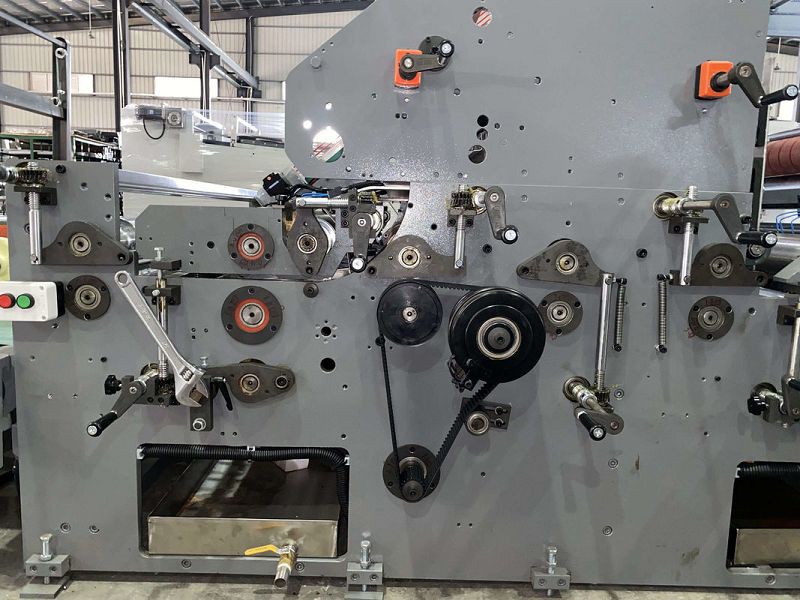

- Belt-Driven System
Cut down maintenance cost and lower the noise

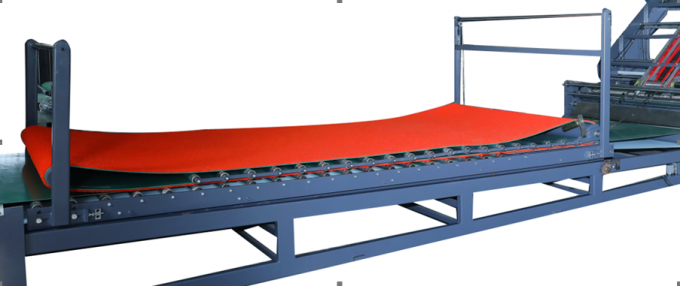

Pressing Conveyor
Integrated with upper and lower pressing conveyor, all boards are pressed and dried naturally until they are laminated tightly without air bubbles.

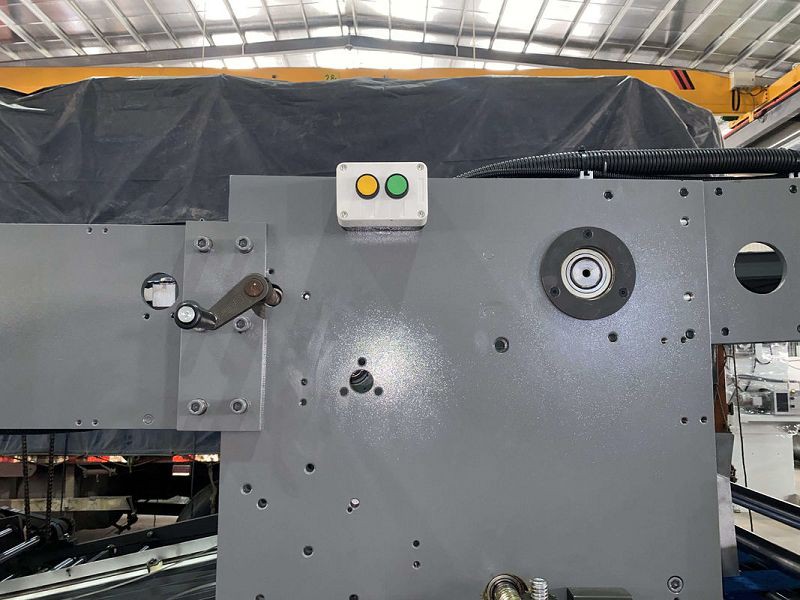

Side Frames
Newly designed machine with strengthened frames ensures stability even at highest speed and long machine life. Independent roller wheels are easy to dismantle to ensure quick replacement.
Solid and durable precision casting hand wheels.
Electrical Control System
1. Operator Panel shows all operation buttons and functions. Auxiliary Operator Panels are located in the Feeder and Pressing Conveyor. The Counter calculates laminating sheets through photocell control and Fixed Speed Device ensures fixed running speed.
2. Electrical driven systems are Schneider and Fotek & Anly from Taiwan.
TagsοΌ
Double Wall Flute Lamination Pasting Machine
PLC Flute Lamination Pasting Machine
Corrugated Box Lamination Machine
DW-1650 Flute Laminator
What actually matters to a factory owner
1. If your board is not flat, this machine still runs
Most laminators look good on perfect paper.
Reality:
ο·warped board
ο·soft flute
ο·uneven thickness
This machine is built for that.
π suction + belt + correction system
π keeps feeding stable even on bad material
If your raw material is not perfect - this matters more than speed.
2. Registration is consistent, not lucky
You don't want:
β good sheets in the middle
β bad sheets at the beginning and end
With servo correction, it keeps alignment stable during the whole run.
π around ±1.5mm in real production
π less adjustment by operator
Less waste. Less arguing on the shop floor.
3. Real output, not brochure speed
You will see machines claiming crazy speed.
Then:
β feeding stops
β sheets overlap
β glue not even
This one runs at a speed your workers can actually keep up with.
π stable output is where money comes from
not peak speed.
4. Glue control is where you save hidden cost
Most factories don't notice this at first.
But over time:
β too much glue → cost goes up
β uneven glue → bonding problems
This machine:
β controlled glue feeding
β recycling system
β even coating
π less glue, better bonding
5. Pressing section is long enough to do the job properly
Some machines laminate fast, but don't press enough.
Result:
β bubbles
β weak bonding
β complaints from customers
This machine:
β long pressing conveyor
β natural drying while running
π finished sheets come out ready, not risky
6. It's heavy for a reason
Around 10 tons machine weight.
That's not a disadvantage.
π less vibration
π better stability at speed
π longer lifetime
Light machines shake. This one doesn't.
7. You won't fight the machine every day
Operators don't like complicated machines.
This one is straightforward:
β stable feeding
β less manual correction
β fewer breakdowns
π less dependence on skilled workers
8. Parts are not the cheap type
Servo, electrical, air system - all from known brands.
That means:
β easier maintenance
β parts available globally
β less unexpected failure
The real reason factories buy this
Not because it's "advanced".
Because:
π they are already losing money
from:
β waste
β unstable lamination
β rework
β customer complaints
And they need something that just runs.
One sentence you can use
If your current laminator works only when everything is perfect,
this one works when things are not.
DW-1650 Flute Laminator
Real Q&A from carton / printing factory owners
1. Can it handle warped or poor-quality corrugated board?
Yes. That's actually where this machine shows its value.
With suction feeding and correction system, it keeps running even if:
β board is slightly curved
β flute is soft
β thickness is not perfectly consistent
If your material is always perfect, any machine works.
If not, this one makes a difference.
2. How accurate is the lamination in real production?
In normal running, around ±1.5mm.
More important:
β it stays consistent during long runs
β not just accurate at the beginning
You don't need constant manual adjustment.
3. What is the real production speed?
Up to 5000 sheets/hour.
But the key point:
β stable feeding
β no frequent stops
β low reject rate
So your actual daily output is reliable.
4. Does it have problems with double sheets or misfeeding?
Less than most machines.
The feeding system is designed to:
β separate sheets properly
β keep stable spacing
Of course, operator setup still matters,
but the machine itself is not sensitive.
5. How is the glue consumption?
Lower than average.
Because:
β glue roller is even
β supply is controlled
β excess glue is recycled
Over time, this saves a noticeable cost.
6. Any issue with bubbles or weak bonding?
No, if set correctly.
The pressing section is long enough to:
β remove air
β allow proper bonding
This is important for export cartons or high-end packaging.
7. Is it difficult to operate?
No.
Most operators can learn:
β basic operation in a few days
β stable running in a short time
It doesn't rely heavily on highly skilled workers.
8. How about maintenance?
Routine maintenance is simple:
β cleaning glue system
β checking belts and rollers
Key parts are standard brands,
so replacement is not a problem.
9. What kind of jobs is this machine best for?
Mainly:
β 3 / 5 ply corrugated lamination
β carton packaging
β laminated board for printing
If your factory handles mixed jobs, it's flexible enough.
10. What is the biggest advantage compared to cheaper machines?
Stability.
Cheap machines may:
β run fast on paper
β but stop frequently
β or create more waste
This one focuses on:
β continuous running
β consistent quality
That's where profit comes from.
11. What size range can it handle?
β Max: 1650 × 1450 mm
β Min: around 450 × 450 mm
Covers most standard carton jobs.
12. How long can it run continuously?
With proper setup and material:
ο·full shift operation is not a problem
It's built for production, not testing.
One honest closing answer
"Is this the fastest machine on the market?"
No.But:It is a machine that can run a full day without giving you trouble -and that's what most factories actually need.
