Touch Screen Auto Stacker Machine Flip Flop Stacking Sheets
Touch Screen Auto Stacker Machine
Flip Flop Auto Stacker Machine
Touch Screen Flip Flop Stacker Machine
- Place of Origin:China
- Brand Name:DINGXING/DINGYI
- Certification:ISO/CE
- Model Number:FZ-1650L
Product Details
|
Max. Working Size |
1650mm*1650mm |
|
Min. Working Size |
600mm*600mm |
|
Max. Speed |
10000 Piece/Hour |
|
Automation |
Aotumatic Stacker Out And Pallet Change |
|
Highlight |
Touch Screen Auto Stacker Machine, Flip Flop Auto Stacker Machine, Touch Screen Flip Flop Stacker Machine |
Payment & Shipping Terms
|
Minimum Order Quantity |
1 |
|
Price |
USD80000-USD150000 |
|
Packaging Details |
Meteorological anti-rust film and steel bottom bracket |
|
Delivery Time |
25 days |
|
Payment Terms |
L/C, D/A, D/P, T/T |
|
Supply Ability |
10 Set/Month |
Product Overview
Touch Screen Auto Stacker Machine Flip Flop Stacking Sheets
This machine is designed to automatically collect and stack laminated corrugated sheets. It connects to high speed flute laminators and stacks sheets efficiently with minimal manual work. The machine uses a flip flop system to alternate the orientation of sheets, producing neat and even piles ready for further processing or palletizing.
Core Selling Points
User Friendly Touch Screen Control
The touch screen interface allows the operator to enter sheet dimensions and number of sheets. It simplifies operation and reduces setup time and errors.
Automatic Flip Flop Stacking
The machine flips sheets as they are stacked to produce stable piles. The flip flop mechanism ensures smooth stacking for a variety of sheet sizes.
Integration with Laminator Production Lines
The stacker adjusts automatically to the laminator speed. It maintains continuous operation without slowing down production.
Time and Labour Saving
Automatic sheet collection and stacking reduce labour costs and improve efficiency. The machine automatically sets stack height and maintains consistency.
Technical Specifications
Model Number FZ 1650L
Maximum Sheet Size 1650 mm width by 1650 mm length
Minimum Sheet Size 600 mm width by 600 mm length
Maximum Stacking Speed Up to 10000 sheets per hour depending on paper size and quality
Total Power Required 5.8 KW
Automation Level Automatic stack discharge and pallet change
Certifications ISO and CE
Origin China
Packing Anti rust film with steel base
Delivery Time Approximately 25 days
Minimum Order Quantity 1 set
Payment Terms L C D A D P T T
Monthly Supply 10 sets per month
Functional Components

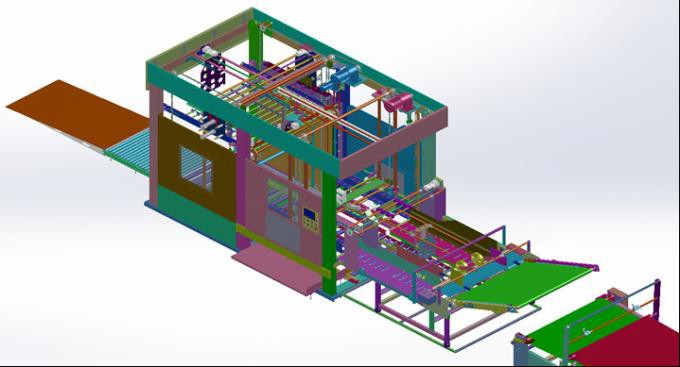

Full machine view showing the complete stacker

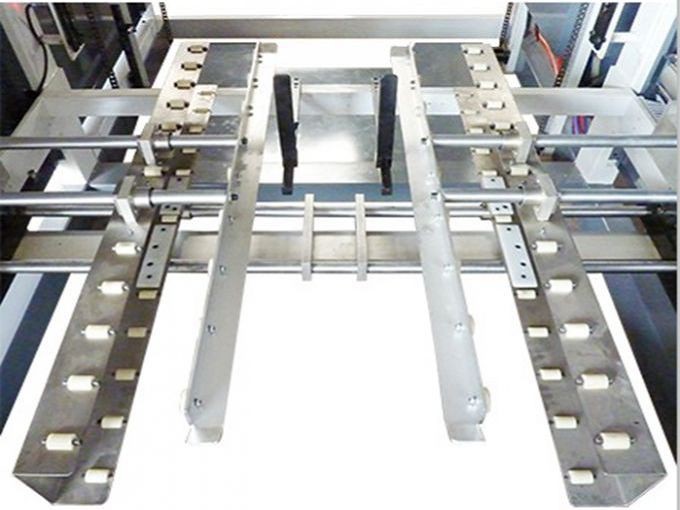

Sheets separation system

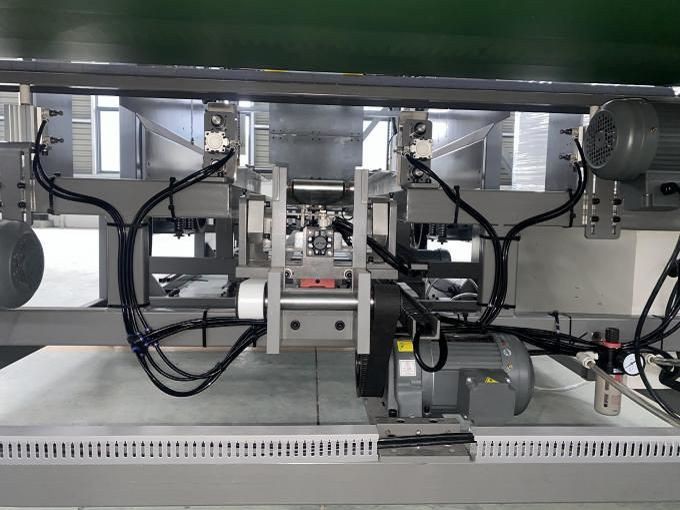

Pre stack alignment and motor drive
Touch screen control panel

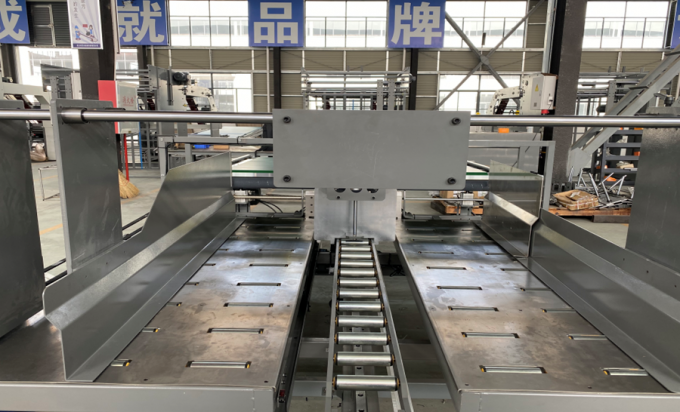

Flip flop stacking mechanism
Paper loosening and lifting unit

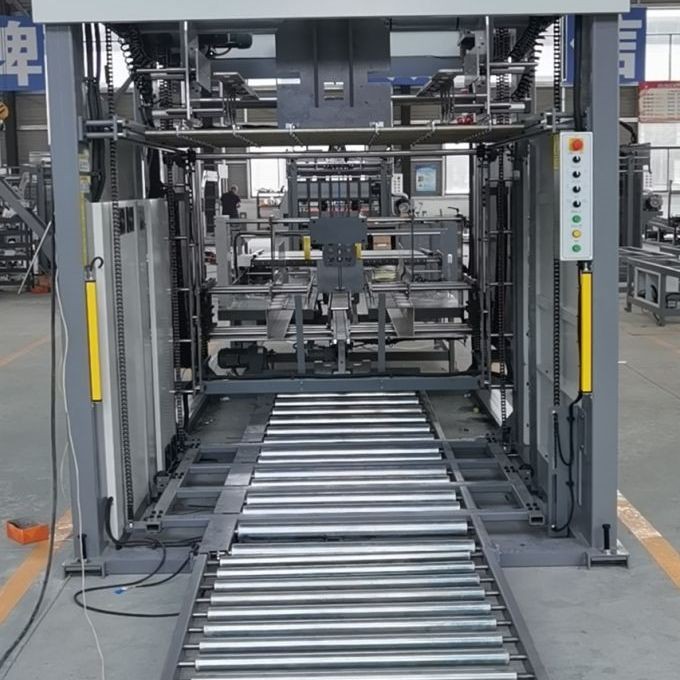

Final stack delivery section and control cabinet
Workflow
Sheets are separated from the laminator discharge conveyor
Sheets pass through the pre stack system which aligns and sets stack height
The flip flop unit alternates sheet orientation while stacking
Completed stacks are delivered to the exit conveyor or pallet area
Operators can adjust sheet size and number using the touch screen
Value for Indian Customers
Improves stacking consistency for different sheet sizes
Reduces manual work and increases safety
Touch screen control makes format changes faster
Compact design integrates with existing laminating lines
Maintenance is easy due to clear mechanical layout
Product Description
Automatic Flip Flop Stacker
In order to achieve best efficiency for High Speed Laminator, this flip flop stacker is to track the speed of the laminator and collect laminated sheets in piles neatly and automatically, and be integrated into one production line with flute laminator to increase efficiency.
Description
1, Integrated with flute laminator to ensure automatic collection, stacking of laminated sheets.
2,Fully intermittent turning, flip-flop stacking sheets into an organised and smooth piling.
3, Stacked by one pile of up and one pile of down or two piles up and two piles down subject to paper thickness and job request.
4.Automatic paper pile height setting.
5.Touch screen operation, user-friendly and easy to run.
6 Time-saving, labor-saving and production efficient.
7. Max speed is 10000 sheets per hour.
Specifications
|
Model |
FZ-1650L |
|
Max. Sheet Size |
1650(W)*1650(L)(mm) |
|
Min. Sheet Size |
600(W)*600(L)(mm) |
|
Max. Speed |
6000-1000Sheets/hour (Subject to paper quality and size) |
|
Total Power Required |
5.8KW |
Specifications are subject to change without notice
Laminated Sheets Separation System
Main purpose is to separate the heavily overlapped sheets from pressing conveyor of laminator and deliver laminated sheets to paper collection system
Pre-stack System
Pre-stack system is to collect with laminated sheets separation system, and stack one pile of sheets neatly and deliver to flip flop system. Stack height is adjustable by entering number of sheets into HMI and paper push is driven by motor
Touch Screen (HMI)
To enter paper size, paper quantity and start the machine running.
Paper Flip Flop System
Paper Loosening System
Paper Lifting System
Paper lifting system is driven by Innovance servo motor
Tags：
Corrugated Paperboard Auto Stacking Machine
Touch Screen Flip Flop Stacker Machine
Flip Flop Auto Stacker Machine
Touch Screen Auto Stacker Machine Flip Flop Stacking Sheets – Q&A
1. What is the maximum sheet size this machine can handle?
The machine can handle sheets up to 1650 mm in width and 1650 mm in length.
2. What is the minimum sheet size?
The minimum sheet size is 600 mm in width and 600 mm in length.
3. How many sheets can it stack per hour?
The maximum stacking speed is up to 10,000 sheets per hour. The actual speed depends on sheet size and paper quality.
4. Does it work with all laminators?
It is designed to work with high-speed flute laminators. The machine automatically adjusts to laminator speed for continuous operation.
5. How is the stacking done?
The machine uses a flip flop system to alternate sheet orientation, creating neat and even stacks ready for palletizing or further processing.
6. How do I control the machine?
It has a touch screen interface. You can set sheet dimensions, number of sheets per stack, and start or stop the operation from the screen.
7. How much power does it require?
The total power requirement is 5.8 kW.
8. How much space does the machine occupy?
The machine has a compact footprint designed to fit next to existing laminators and conveyors.
9. How is maintenance handled?
The mechanical sections are easy to access. Regular inspection of the motor, belts, and stacking mechanism is sufficient for smooth operation.
10. What are the payment terms and delivery time?
We accept L/C, D/A, D/P, and T/T. The delivery time is approximately 25 days for one set.
