1450*1450mm Automatic Paper Stacker Machine 10000Pcs/H High Speed
Paper Stacker Machine 10000Pcs/H
1450*1450mm Paper Stacker Machine
10000Pcs/H Automatic Paper Stacker
- Place of Origin:China
- Brand Name:DINGXING/DINGYI
- Certification:ISO/CE
- Model Number:FZ-1450
Product Details
|
Max. Working Size |
1450mm*1450mm |
|
Min. Working Size |
500mm*500mm |
|
Max. Speed |
10000 Piece/Hour |
|
Automation |
Aotumatic Stacker Out And Pallet Change |
|
Highlight |
Paper Stacker Machine 10000Pcs/H, 1450*1450mm Paper Stacker Machine, 10000Pcs/H Automatic Paper Stacker |
Payment & Shipping Terms
|
Minimum Order Quantity |
1 |
|
Price |
USD80000-USD150000 |
|
Packaging Details |
Meteorological anti-rust film and steel bottom bracket |
|
Delivery Time |
25 days |
|
Payment Terms |
L/C, D/A, D/P, T/T |
|
Supply Ability |
20 Set/Month |
1450×1450mm Automatic Paper Stacker Machine – 10,000 Sheets/Hour
Overview:
The FZ-1450 Automatic Paper Stacker is designed to work seamlessly with high-speed flute laminators. It automatically collects, aligns, and stacks laminated sheets into organized piles, improving production efficiency while saving labor.
Key Features:
Fully integrated with flute laminators for automatic collection and stacking.
Flip-flop stacking system with fully intermittent turning, accommodating single or double pile arrangements depending on paper thickness.
Automatic pile height adjustment for consistent stacking.
Touch-screen HMI for easy operation: enter paper size, quantity, and start the machine.
Time-saving and labor-efficient, capable of handling large production volumes.
Specifications:
- Model: FZ-1450
- Max. Sheet Size: 1450 × 1450 mm
- Min. Sheet Size: 500 × 500 mm
- Max. Speed: 6,000–10,000 sheets/hour (depending on paper quality and size)
- Total Power Required: 9 kW
Supporting Systems:
- Laminated Sheets Separation System: Separates overlapped sheets from the laminator conveyor and delivers them to the stacker.
- Pre-Stack System: Collects and neatly stacks sheets before sending them to the flip-flop system; adjustable stack height via HMI.
- Paper Flip-Flop System: Ensures organized, alternating sheet placement for stable piles.
- Paper Loosening & Lifting System: Driven by Innovance servo motor for smooth sheet handling.
Product Description
FZ-1450 Auto Flip Flop Stacker
Automatic Flip Flop Stacker
In order to achieve best efficiency for High Speed Laminator, this flip flop stacker is to track the speed of the laminator and collect laminated sheets in piles neatly and automatically, and be integrated into one production line with flute laminator to increase efficiency.
Description
1, Integrated with flute laminator to ensure automatic collection, stacking of laminated sheets.
2,Fully intermittent turning, flip-flop stacking sheets into an organised and smooth piling.
3, Stacked by one pile of up and one pile of down or two piles up and two piles down subject to paper thickness and job request.
4.Automatic paper pile height setting.
5.Touch screen operation, user-friendly and easy to run.
6 Time-saving, labor-saving and production efficient.
7. Max speed is 10000 sheets per hour.
Specifications
|
Model |
FZ-1450 |
|
Max. Sheet Size |
1450(W)*1450(L)(mm) |
|
Min. Sheet Size |
500(W)*500(L)(mm) |
|
Max. Speed |
6000-1000Sheets/hour (Subject to paper quality and size) |
|
Total Power Required |
9 KW |
Specifications are subject to change without notice

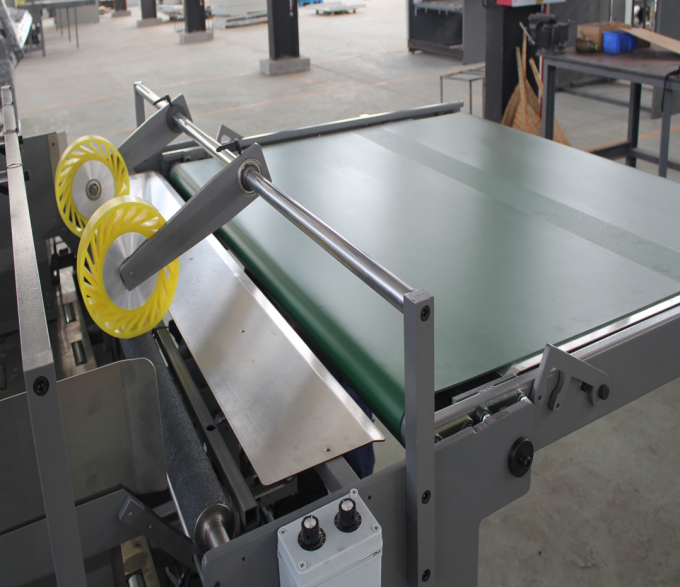

Laminated Sheets Separation System
Main purpose is to separate the heavily overlapped sheets from pressing conveyor of laminator and deliver laminated sheets to paper collection system

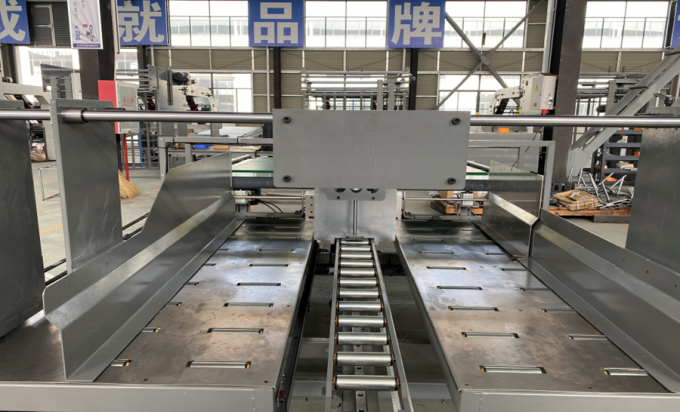

Pre-stack System
Pre-stack system is to collect with laminated sheets separation system, and stack one pile of sheets neatly and deliver to flip flop system. Stack height is adjustable by entering number of sheets into HMI and paper push is driven by motor
Touch Screen (HMI)
To enter paper size, paper quantity and start the machine running.
Paper Flip Flop System
Paper Loosening System
Paper Lifting System
Paper lifting system is driven by Innovance servo motor
Tags：
Corrugated Paperboard Auto Stacking Machine
Touch Screen Flip Flop Stacker Machine
Flip Flop Auto Stacker Machine
FZ-1450 Automatic Paper Stacker – Customer Q&A (Southeast Asia Packaging Focus)
Q1: What is the maximum sheet size this stacker can handle?
A: The FZ-1450 can stack sheets up to 1450 × 1450 mm, suitable for large corrugated sheets and laminated boards used in packaging production.
Q2: What is the minimum sheet size it supports?
A: The minimum sheet size is 500 × 500 mm. This allows flexibility for small and medium-sized packaging sheets.
Q3: How many sheets per hour can this machine stack?
A: It can process 6,000–10,000 sheets per hour depending on paper type and size, keeping up with high-speed laminators.
Q4: Can it handle laminated and coated papers?
A: Yes, the machine handles a range of paper types, including laminated, coated, and standard corrugated sheets.
Q5: How does it improve production efficiency?
A: The stacker automatically collects, aligns, and stacks sheets from the laminator. This reduces manual labor and ensures neat, consistent piles, improving workflow speed.
Q6: How is the stack height controlled?
A: Stack height is fully adjustable through the touch-screen HMI. Operators can set desired pile height for smooth downstream handling.
Q7: Does it integrate with existing laminators?
A: Yes, it is designed to work seamlessly with high-speed flute laminators, automatically collecting sheets as they exit the laminator.
Q8: What safety features does it have?
A: The machine has emergency stop buttons and protective covers on moving parts to ensure operator safety.
Q9: How easy is it to operate?
A: Operation is simple via the touch-screen HMI: input paper size, quantity, and start the machine. Minimal training is needed.
Q10: How reliable is it in a tropical climate common in Southeast Asia?
A: The machine is built with industrial-grade components resistant to humidity and high temperatures. Routine maintenance ensures stable performance.
