Product introduction
CHM-SGT double sheeter machine series features fibre-less and clean cuts with high dimensional precision.Best for board paper,are paper,kraft paper and packaging paper or board etc.
Product parameter
|
Model |
CHM-SGT1400/1700/1900 |
|
|
1. Type of cutting |
: |
Top blade and bottom blade rotary |
|
2. weight of paper |
: |
200-1000 GSM |
|
reel diameter |
: |
Max 1800mm(71") |
|
Cutting length |
: |
450-1650mm |
|
5. Cutting accuracy |
: |
±0.5mm(L<1000mm) ±0.1% (L≥1000mm) |
|
6. Max. speed of cutting |
: |
300cuts/min |
|
7. Max. cutting speed |
: |
300m/min |
|
8. Requirement of the air pressure |
: |
0.8MPa |
|
9. Max Mother Roll Diameter |
: |
1400mm/1700mm/1900 |
|
10. Total power: |
: |
84KW |
|
11. Machine Weight |
: |
15000kg/17000kg/18400kg |

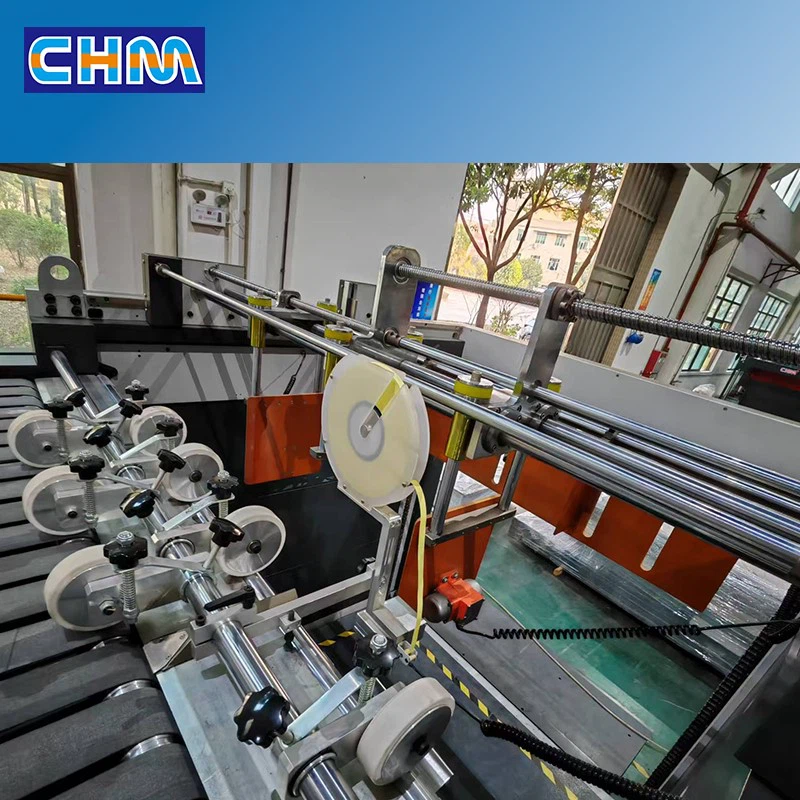

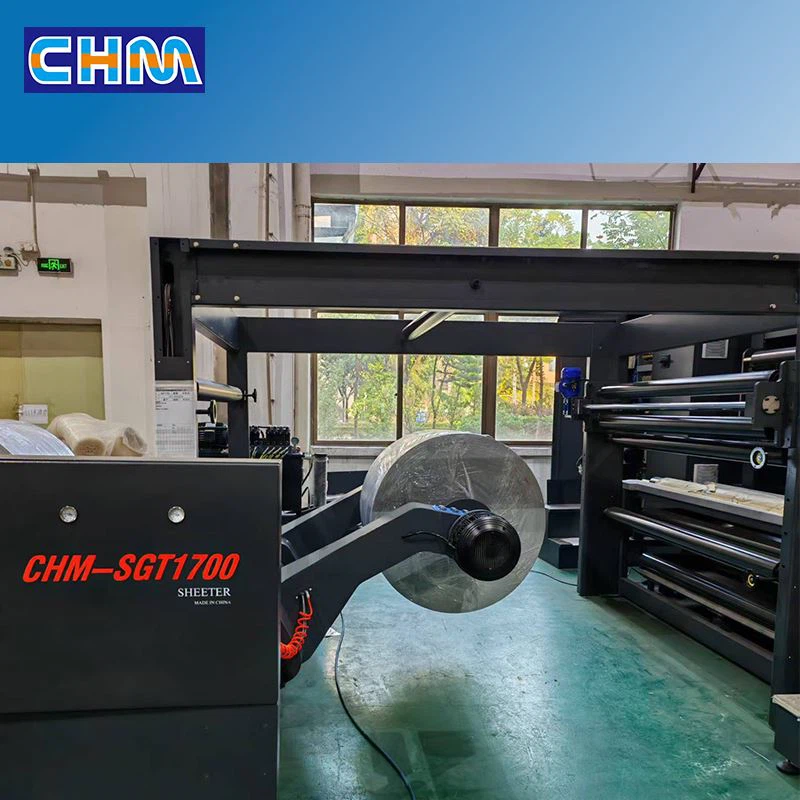

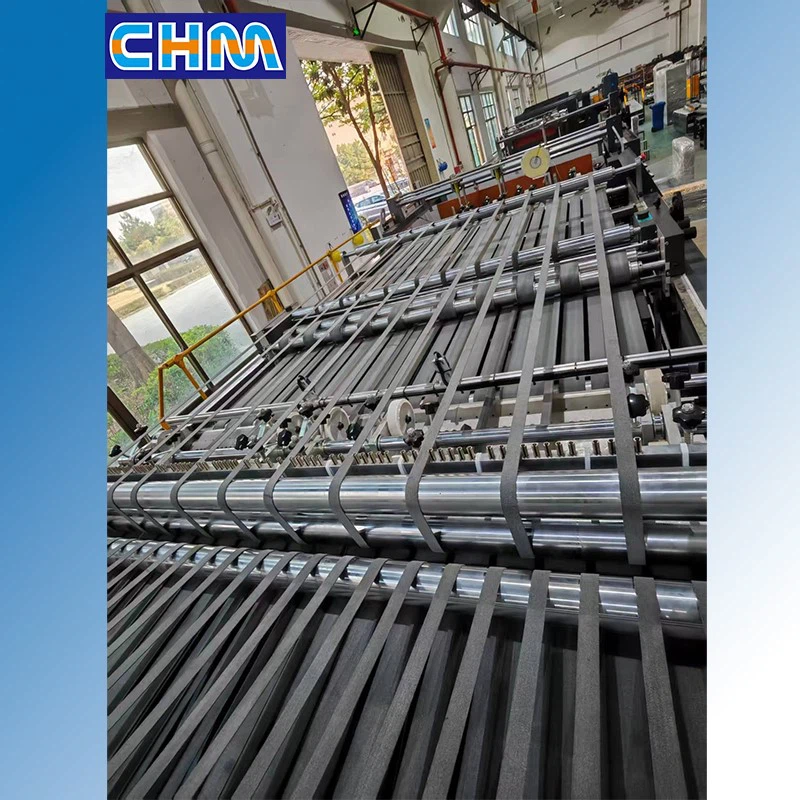

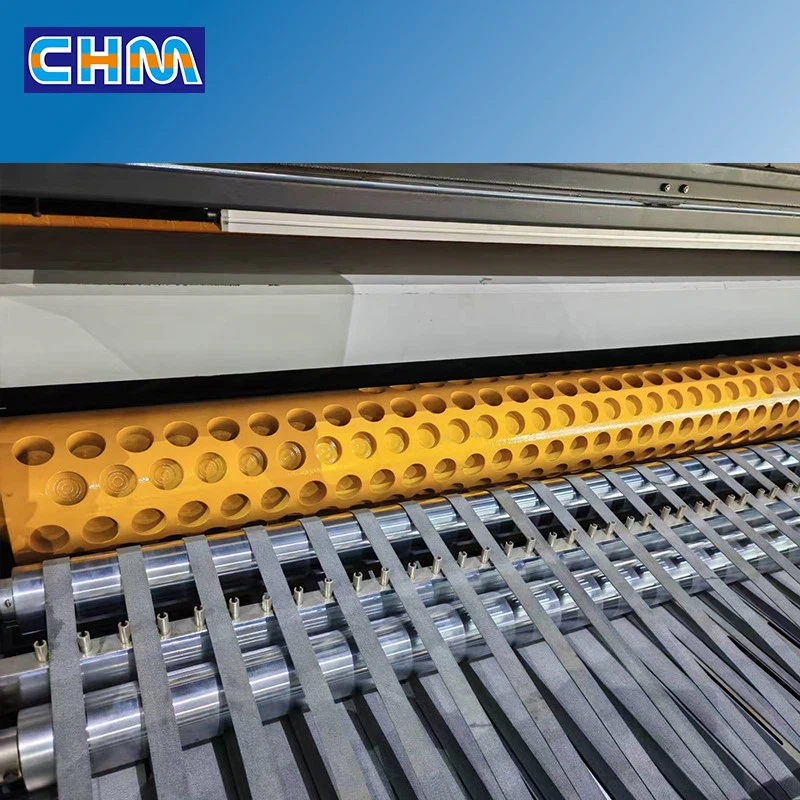

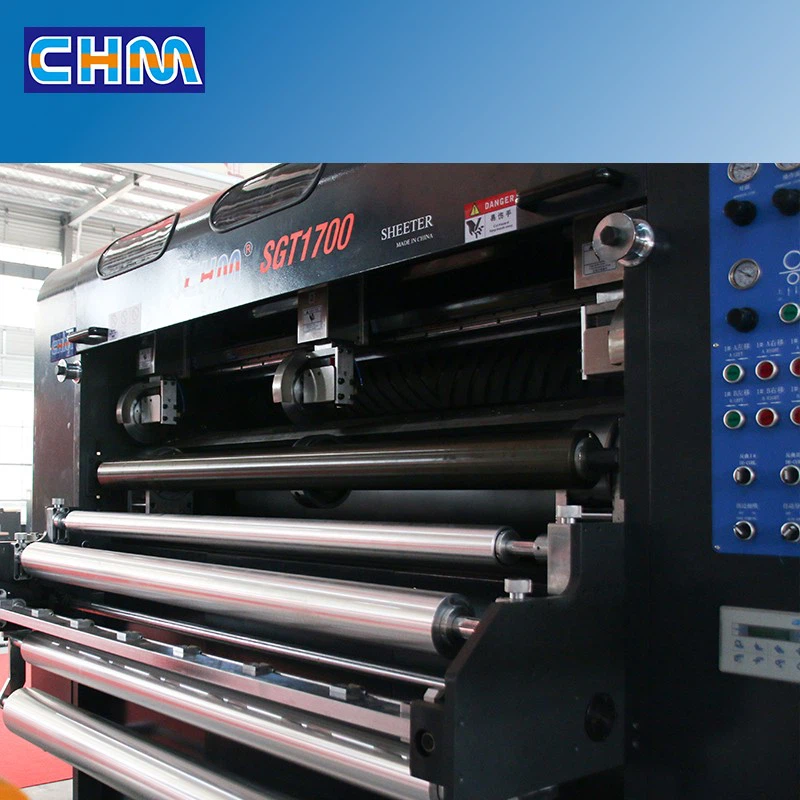

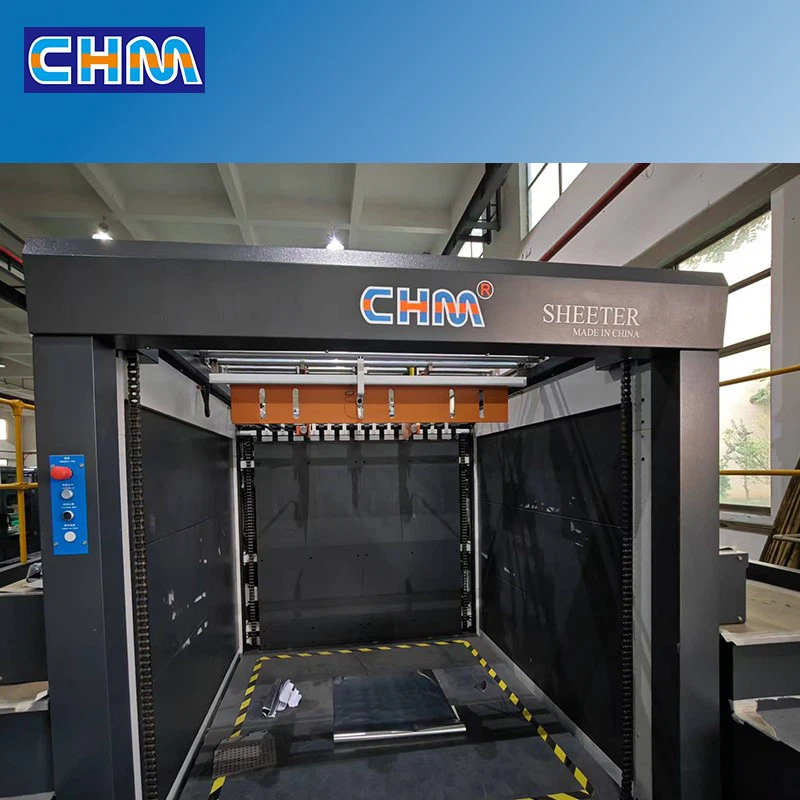

Product display
FAQ
1.What is the development history of your company?
CHM Machinery is a manufacturer specializing in pre-press equipment - paper sheeting machines. Since established in 2004, it has always focused on and persisted in providing customers with the best products and services. After more than 20 years of development, it has a high reputation in the industry. Many post-press processing industry have known about our company.We exported more than 80 countries, and we have markets in many regions around the world.
2.What advantages does your machine have compared with other machines?
We are professional manufacturers of sheeting machines. We were among the earliest batch of enterprises to start producing slitting machines in China and have the largest number of patented technologies in the same industry. Besides, we also have a professional R & D team with the ability of independent research, development and innovation.
3.What after-sales services can you provide?
Professional manual, professional technical and after-sales service team, remote monitoring, after-sales service hotline.
