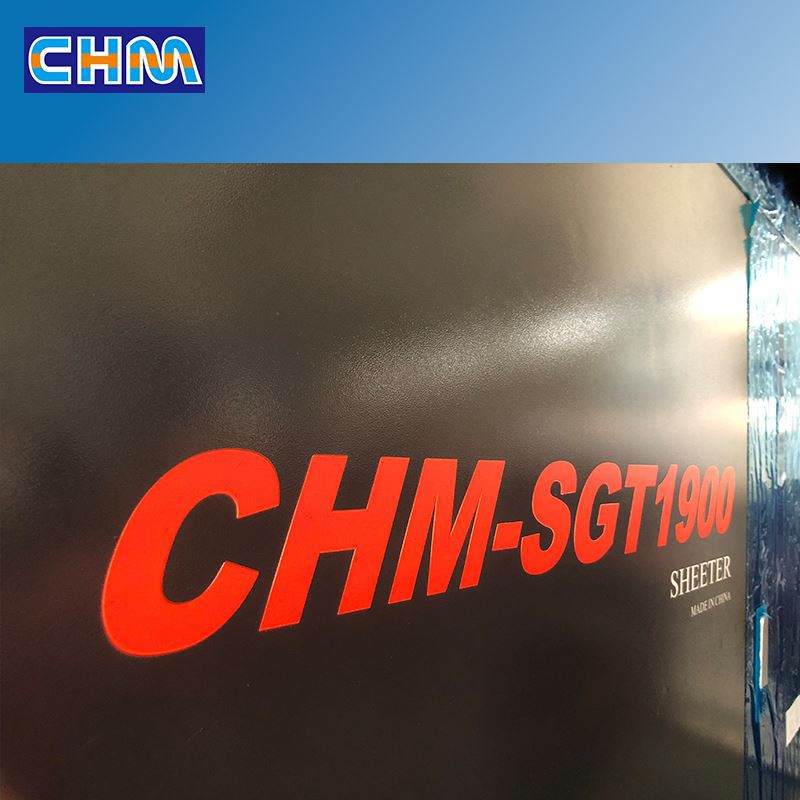

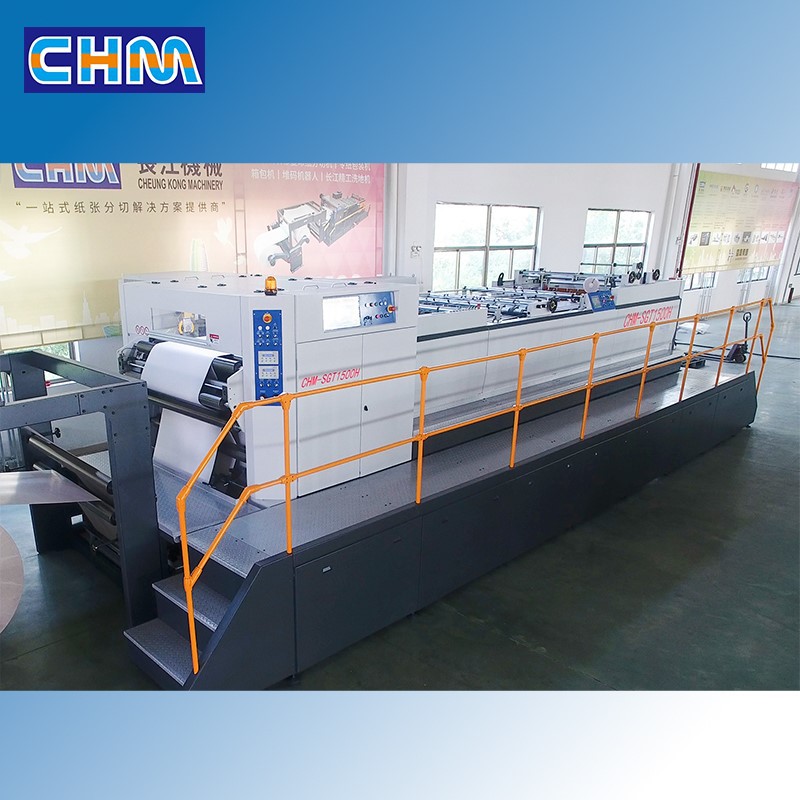

High End Synchro Double Rotary Knife Paper Sheeter Machine

The fully automatic servo system controls the center parting cutter and trimming cutter one by one to realize fully automatic intelligent control

1)Top and bottom Tool Apron

Adopting advanced high-power CT servo motor and controlling double screw cutter can effectively eliminate paper burr.

2)Main driving roller: grainy surface, controlled by the air

Pressure so as to grip the paper

Type:Anti-static bar, can eliminate static in the sheets.

1)Type：

Horizontal conveying with multi-stage so as to counting

and piling conveniently

2)The first conveying stage

To separate cutting paper quickly

3)The Second conveying stage

To conveyer paper like shape of tile with slow speed, single

or linkage acting control

4)The power deceleration belt is adopted to avoid violent impact in the process of paper stacking at high and low differential speed of paper travel. It has a good effect on easy to scratch paper without any trace or light spot.

1)Type

Insert after counting precisely

2)Function

A,After inputting number of paper pieces in HMI,

B,then it can work according to requirements.

Refill defective product

1)Type

Electric piling paper stand, it can auto goes down when paper

piling up to a certain height.

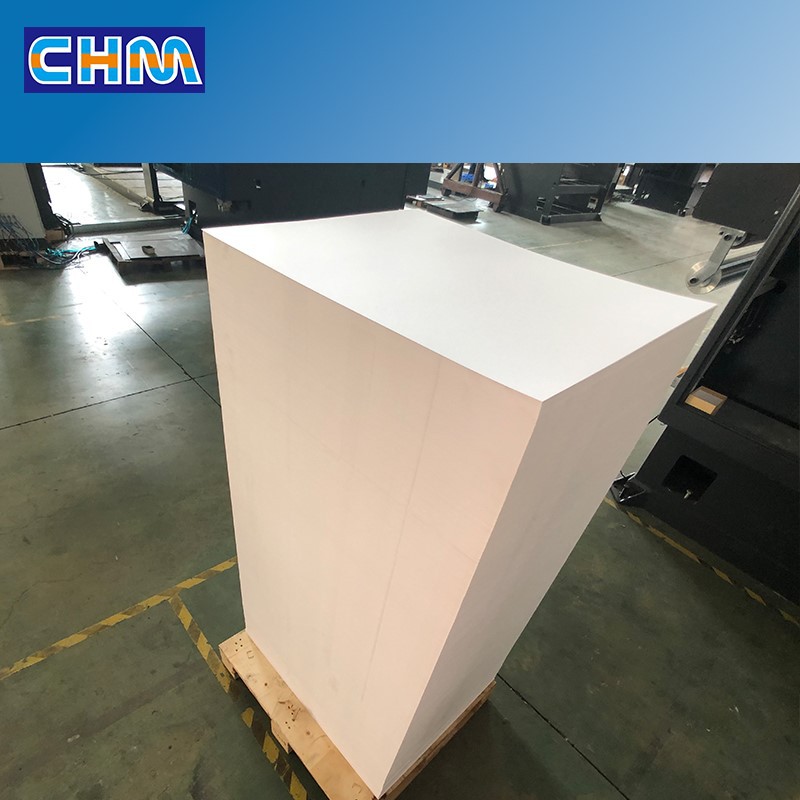

2)Height of paper stack: Max. 1700mm (66.9")

3)Size of finished paper: W=1700mm (66.9")

L=1700mm(66.9")

4)Weight of Stacker: 2500kgs

5)Jogger: Dynamic type jogger for front

and both sides; adjustable type tailgate

Put the paper roll diameter and paper weight number into

touching screen, the tension will be controlled by computer

automatically

The automatic deviation correction guide device ensures

that the paper does not deviate.

Optional function

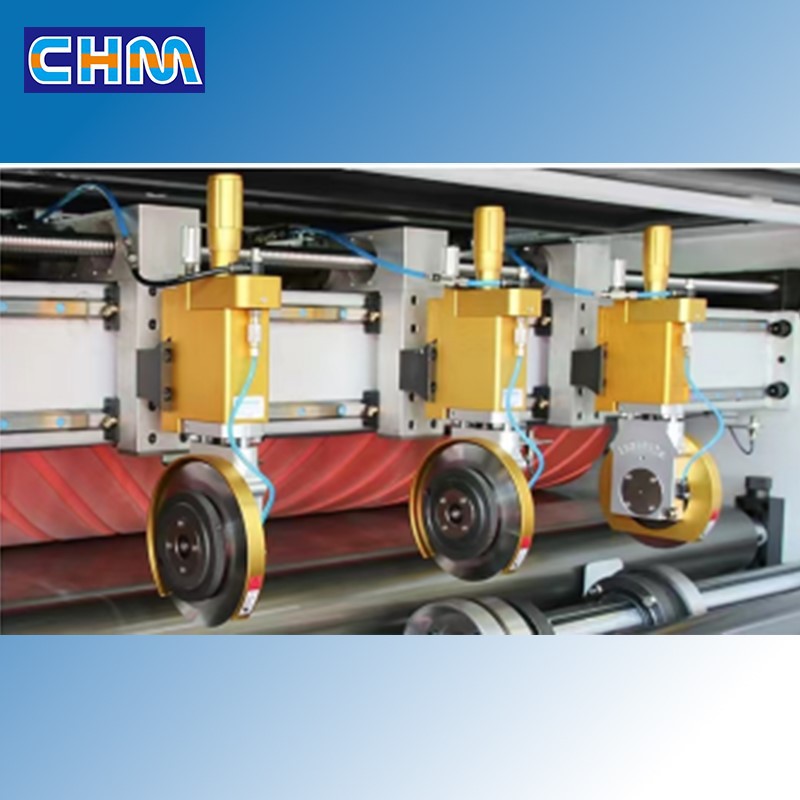

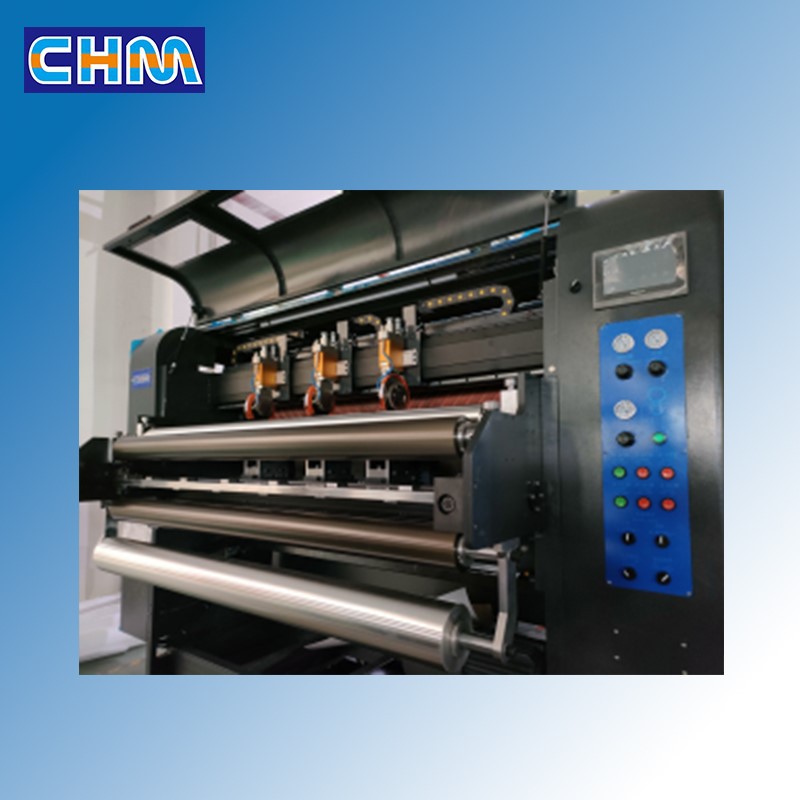

1.Automatic slitting knives

automatic closing (retracting) knife, the setting time is very short, and it can be completed in 10 seconds, which can significantly improve the productivity.

2.Auto splicer

The frame structure made of high-quality carbon structural steel is stable, and the high-precision full-servo tension control system makes the preparation for paper splicing easy and fast; it can be diagnosed and controlled by maintenance procedures through the touch screen, and monitor the length, weight, area, and tension of the base paper , The size of the original paper diameter, the current speed of the equipment; automatic paper picking starts to avoid stopping the machine.

3. Automatic delivery of paper in delivery department ,Manual Pallet Change

The automatic take-up system in the take-up section is based on

computer technology and automated process control technology,

which allows the take-up section to reach a set height or a set

number of orders without rewinding the paper roll, and to unload

the finished paper without stopping the machine before switching.

Auto cursor tracking system
