Product introduction
CHM-A4-2 with 2 rolls model,This is our smallest A4 paper machine model, ideally suited for companies new to the A4 paper business. It features a compact footprint and low investment cost, helping you save significantly on space expenses. With simple operation, the machine can be run by just 2 people.

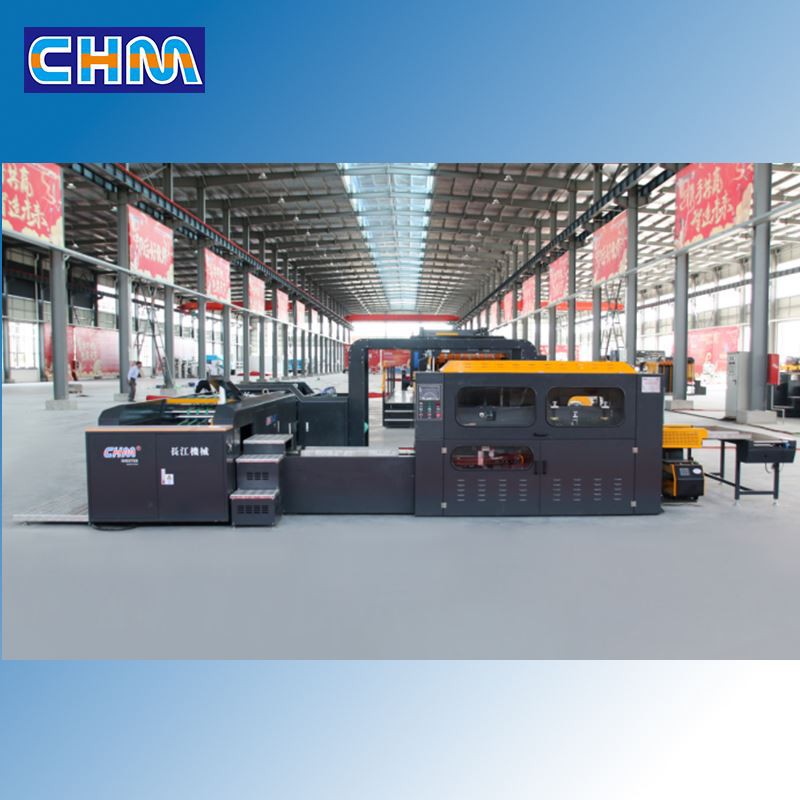

CHM-A4-2(pocket) Cut Size Sheeting Machine
|
Paper Width |
: |
Gross width 850 mm, net width 840mm |
|
Cutting numbers |
: |
2 cutting-A4 210mm (width) |
|
Paper roll's diameter |
: |
Max.Ф1400mm. Min.Ф600mm |
|
Paper core's diameter |
: |
3"(76.2mm)or according to the clients' demand |
|
Packing Paper grade |
: |
High-grade copy paper; High-grade office paper; High grade Free Wood paper etc. |
|
Paper weight |
: |
60-100g/m² |
|
Sheet length |
: |
297mm (specially design for A4 paper, the cutting length is 297mm) |
|
Ream amount |
: |
500 sheets Max. Height: 45-55mm |
|
Production speed |
: |
Max 0-250m/min (depends on different paper quality) |
|
Max. Numbers of cutting |
: |
Max841/min |
|
Output of the ream |
: |
Max 13 reams/min |
|
Load of cutting |
: |
100g/m²(1×100g/m²) |
|
Cutting accuracy |
: |
±0.2mm |
|
Cutting condition |
: |
No variation of the speed, no break, cut all the paper at one time and need the eligible paper. |
|
Main power supply |
: |
3*380V /50HZ |
|
Voltage |
: |
220V AC /24V DC |
|
Power |
: |
22KW |
|
Air consumption |
: |
200NL/min |
|
Air pressure |
: |
6 bar |
|
Edge cutting |
: |
5~15mm*2 |
|
Safety standard |
: |
Design according the safety standard of China |
|
Model |
CHM-A4B |
CHM-A4B15 |
|
|
Paper Width |
Gross width:310mm; Net width :297mm |
||
|
Ream packing high |
Max 55mm ; Min 45mm |
||
|
Packing roll dia. |
Max.1000mm ; Min.200mm |
||
|
Packing roll width |
560mm |
||
|
Packing sheets weight |
70-100g/m² |
||
|
Packing sheets grade |
high-grade copy paper, high-grade office paper, high-grade offset paper etc. |
||
|
Design speed |
Max 50 reams/min |
Max 20 reams/min |
|
|
Operation Speed |
Max 35 reams/min |
Max 15 reams/min |
|
|
Packing condition |
no speed variations, no breaks, cut all the paper at one time and qualified packing paper. |
||
|
Driving |
AC Servo Precision Control |
||
|
Voltage |
220V AC /24V DC (or as required) |
||
|
Power |
18KW |
15KW |
|
CHM-A4B A4 size ream packaging machine
- Optional 1:CHM-A4B ream packaging machine
- The max packaging speed can reach 50 reams per min
- Optional 2:CHM-A4B15 ream packaging machine
- The max packaging speed can reach 50 reams per min

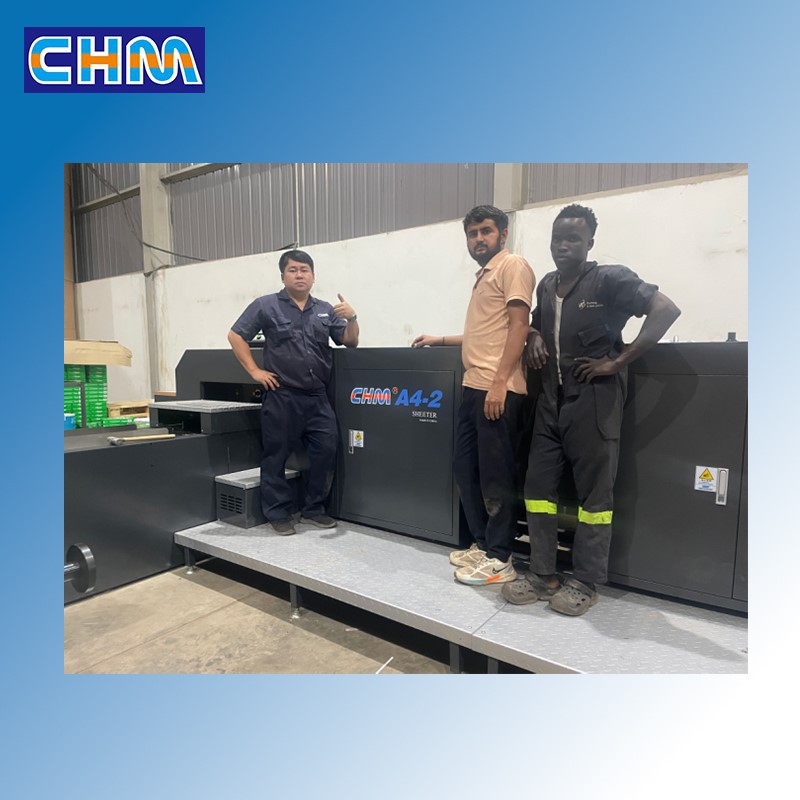

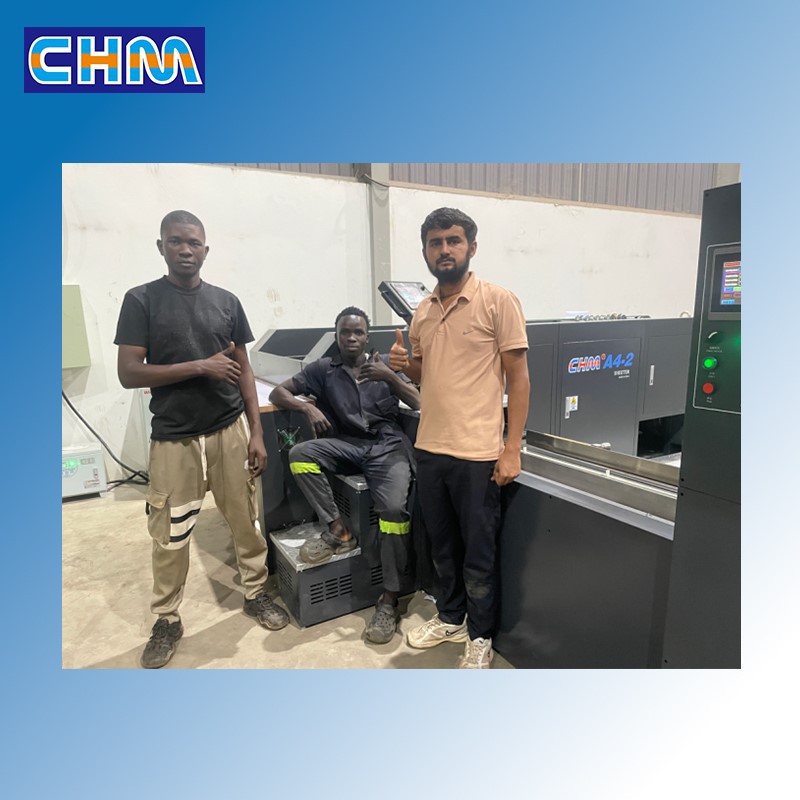

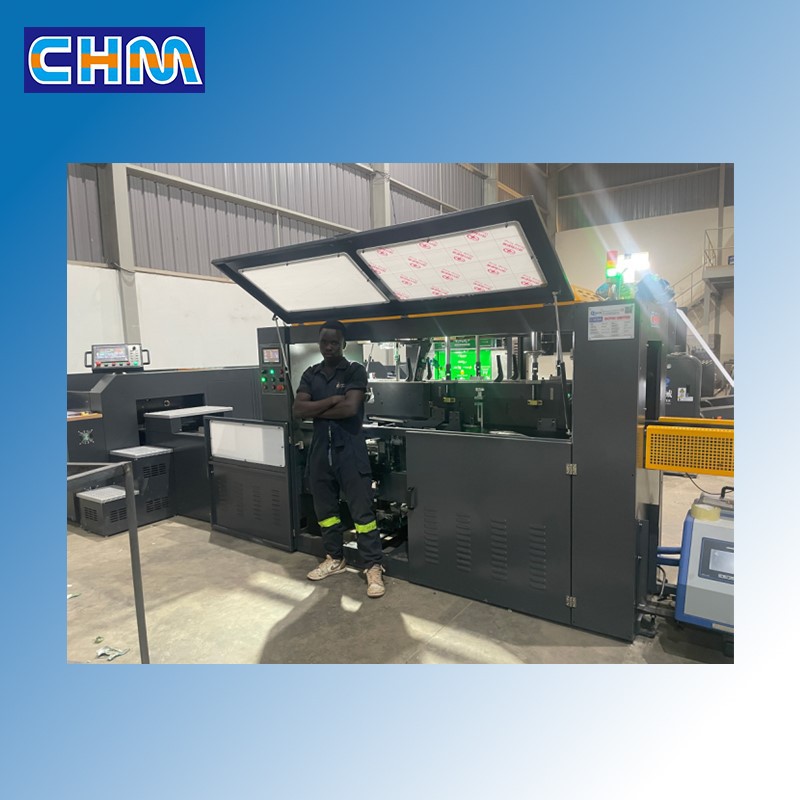

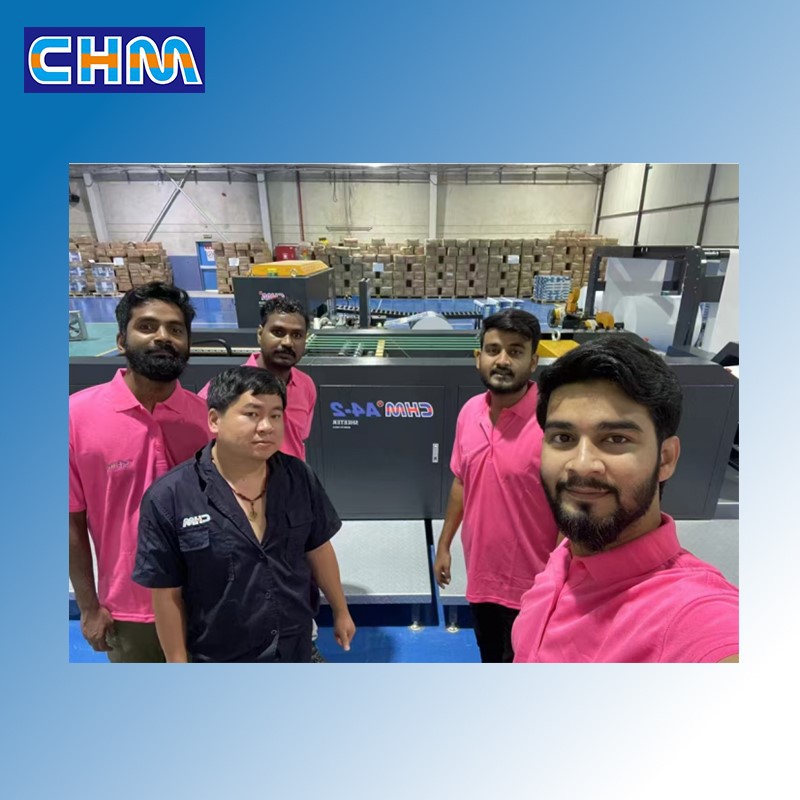

Customer cases display

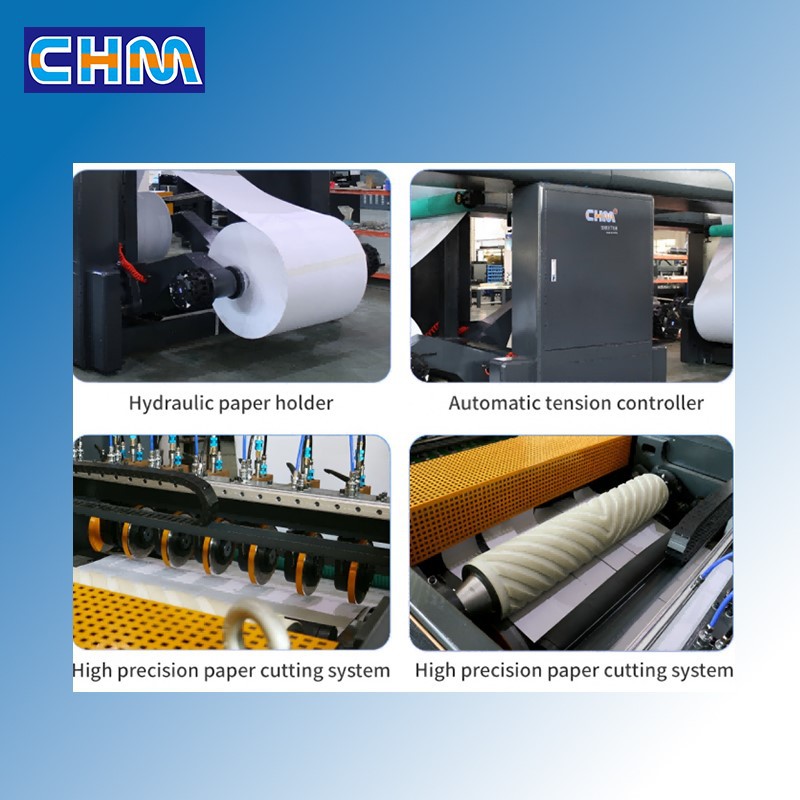

Product details
Machine drawingShipping&Delivery
