Product Introduction

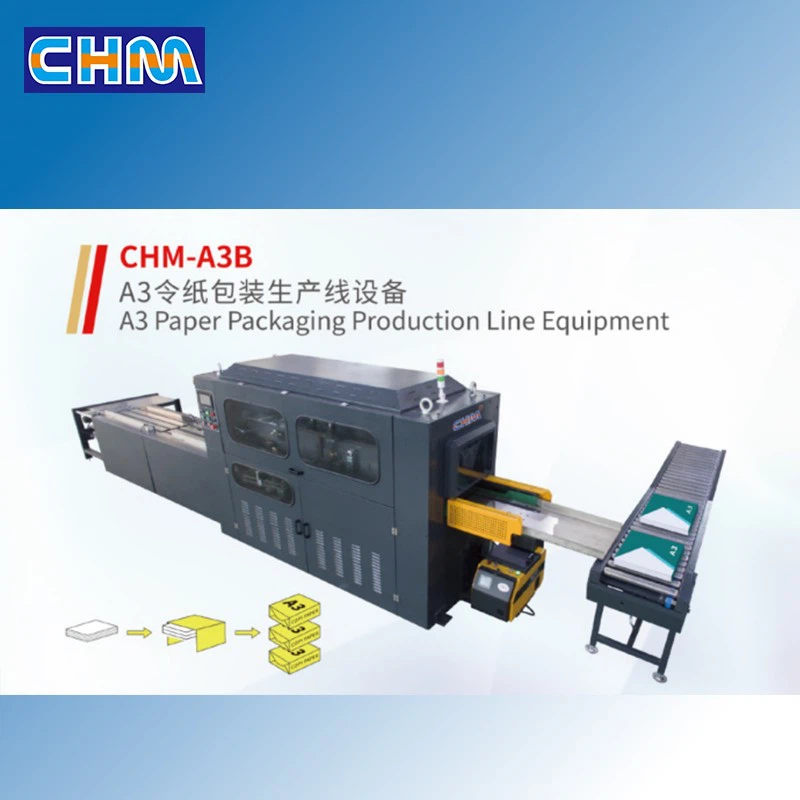

CHM-A3B,A3 paper packaging production equipment,this machine is a set of packaging production line machine,which integrates electrical automation,PLC control system and mechanical automation.It is a complete set of packaging machine for continuous production,which is composed of preparation,opening,memory transmission,packaging and discharging.

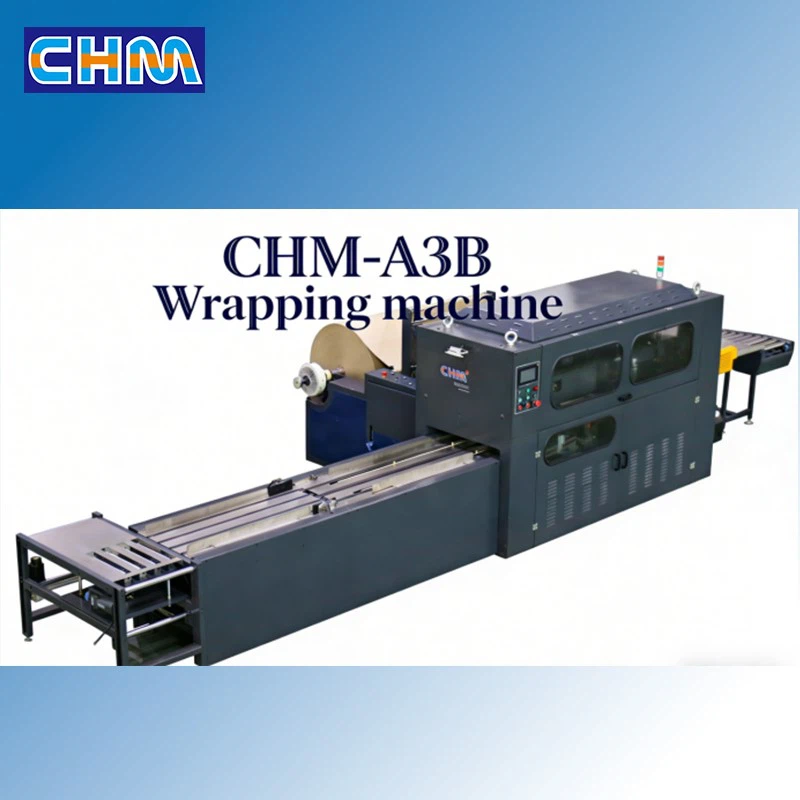

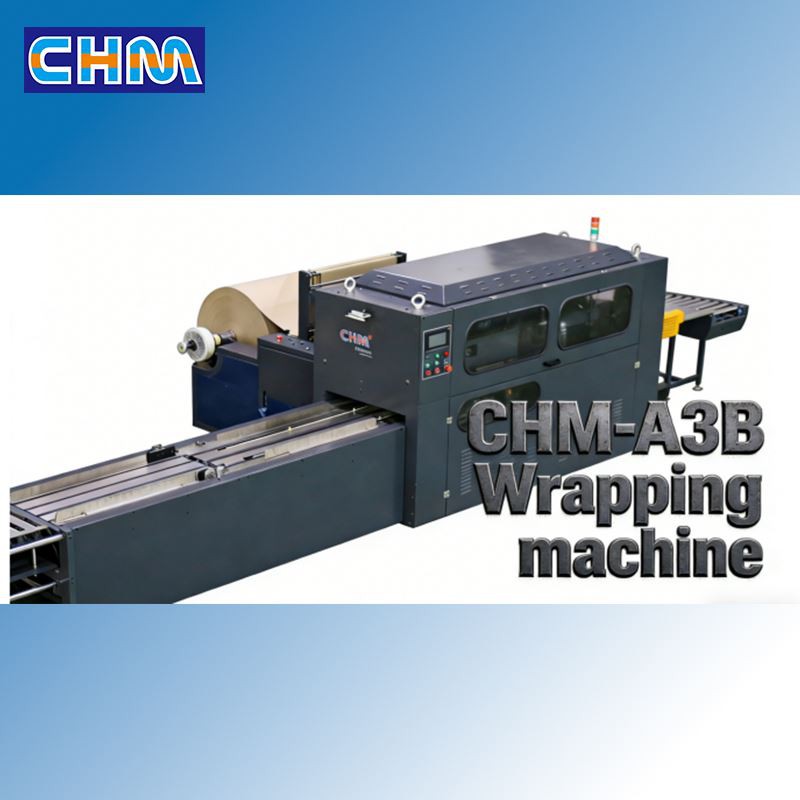

CHM-A3B A3 size ream packaging machine
Product parameter
|
Paper Width |
: |
Gross width:430mm ;net width :420mm |
|
Ream packing high |
: |
Max 55mm ; Min 45mm |
|
Packing roll dia. |
: |
Max.1000 mm ; Min.200mm |
|
Packing roll width |
: |
750mm |
|
Packing sheets weight |
: |
70-100g/m2 |
|
Packing sheets grade |
: |
high-grade copy paper, high-grade office paper, high-grade offset paper etc. |
|
Design speed |
: |
Max 25 reams/min |
|
Operation Speed |
: |
Max 18 reams/min |
|
Packing condition |
: |
no speed variations, no breaks, cut all the paper at one time and qualified packing paper. |
|
Driving |
: |
AC Servo Precision Control |
|
Main power supply |
: |
3*380V /50HZ( or as required) |
|
Voltage |
: |
220V AC /24V DC (or as required) |
|
Power |
: |
18KW |
|
Compressing air consumption |
: |
250NL/min |
|
Air compressor |
: |
6bar |
Product display
FAQ
1.What sizes of paper can your machine pack?
We have different machines to pack papers of different sizes.one ream packaging machine can pack one size.
2.What is the efficiency of the ream packaging machine?
The max operation speed is 18 reams per min.
3.What advantages do your machines have compared with other machines?
Our machine has 13 servos, so it can easily control and coordinate multiple actions such as lifting, pressing, folding, stacking and sealing.
What is the quality of the finished products packaged by the wrapping machine?
The finished paper are packed very tight,the tightness of the packaging can also be adjusted according to the needs of customers.
