Product introduction

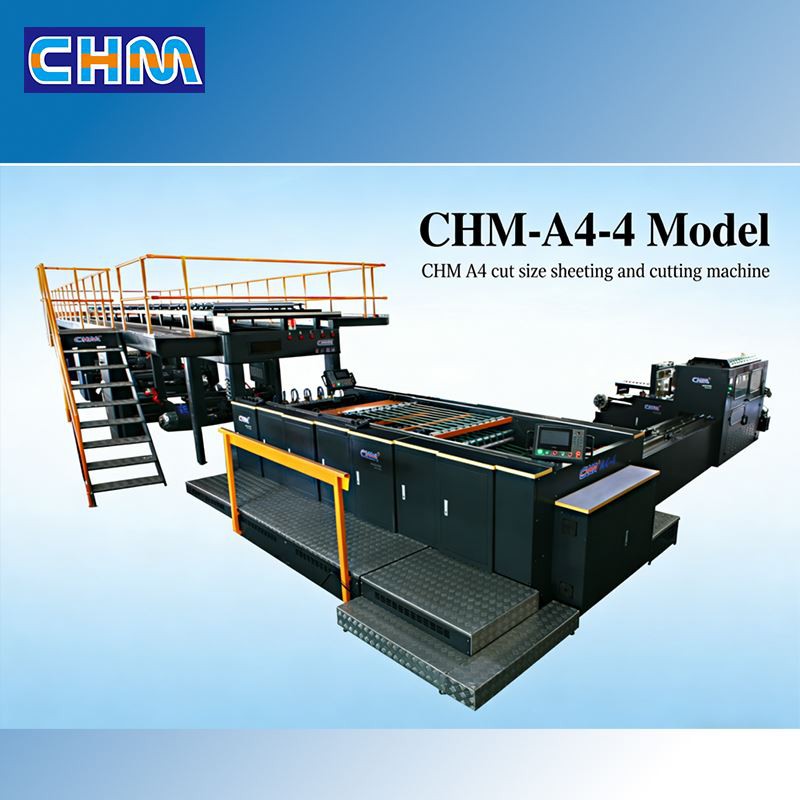

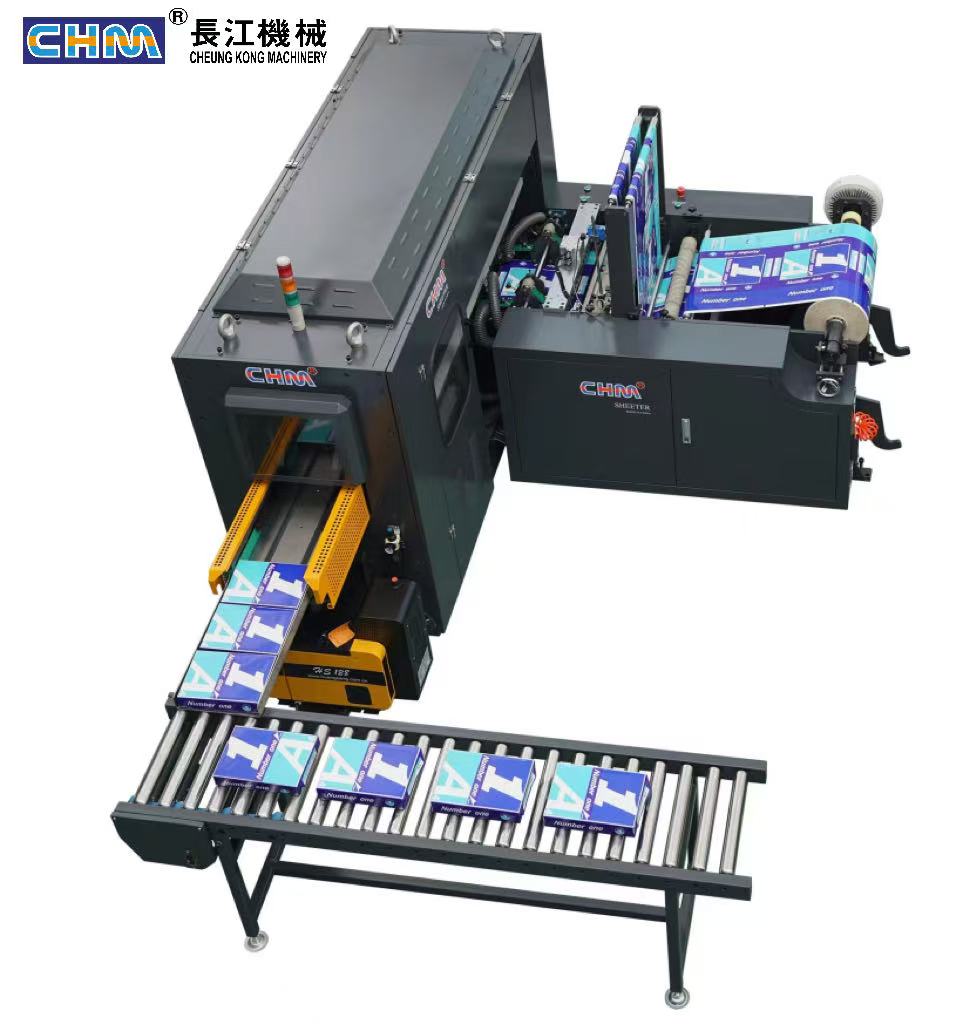

CHM-A4-4 with 4 rolls A4 paper cutting and packaging machine can produce 400 tons of A4 paper.If you work 8 hours per day.This model can meets client's high production capacity needs well.This entire A4 paper cutting and packaging production line is fully automatic,includes paper cutting part,ream packaging part,box wrapping and robot stacking part.

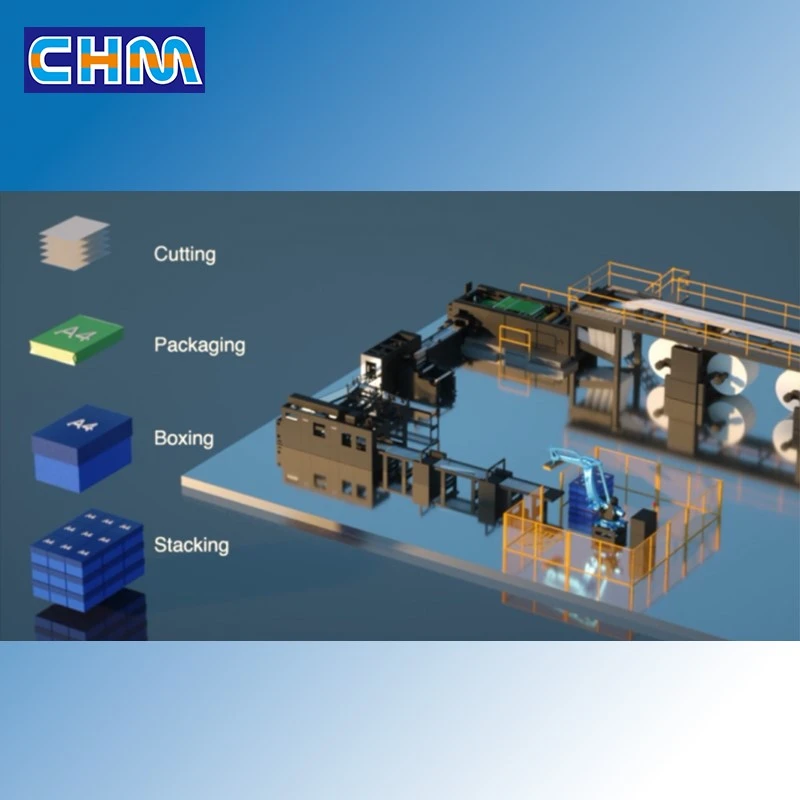

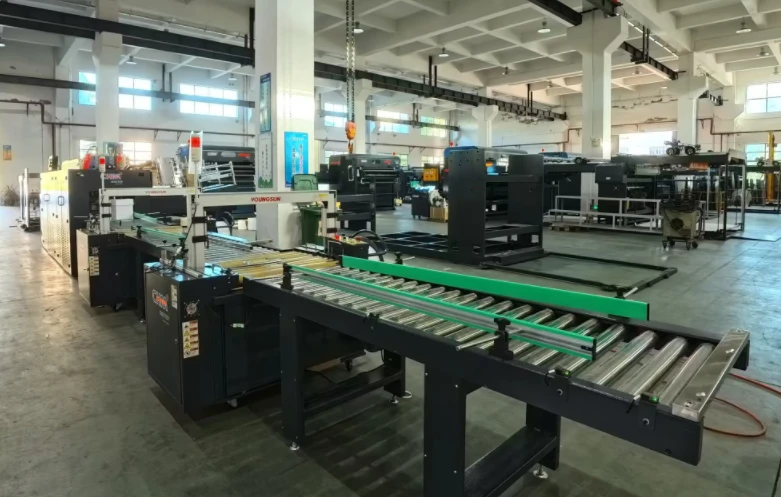

CHM-A4-4 A4 Cut Size Sheeting and Packaging production Line process
Technical Parameters of A4-4 Complete Production Line
▼ Part 1,CHM-A4-4(pocket) Cut Size Sheeting Machine
|
Paper Width |
: |
Gross width 850mm, net width 840mm |
|
Cutting numbers |
: |
4 cutting-A4 210mm (width) |
|
Paper roll's diameter |
: |
Max.Ф1500mm. Min.Ф600mm |
|
Paper core's diameter |
: |
3"(76.2mm)or 6"(152.4mm) or according to the clients' demand |
|
Packing Paper grade |
: |
High-grade copy paper; High-grade office paper; High grade Free Wood paper etc. |
|
Paper weight |
: |
60-100g/m² |
|
Sheet length |
: |
297mm ( specially design for A4 paper, the cutting length is 297mm) |
|
Ream amount |
: |
500 sheets Max. Height: 45-55mm |
|
Production speed |
: |
Max 0-250m/min(depends on different paper quality) |
|
Max. Numbers of cutting |
: |
841/min |
|
Output of the ream |
: |
27 reams/min |
|
Load of cutting |
: |
400g/m² (4×100g/m²) |
|
Cutting accuracy |
: |
±0.2mm |
|
Cutting condition |
: |
No variation of the speed, no break, cut all the paper at one time and need the eligible paper. |
|
Main power supply |
: |
3*380V /50HZ |
|
Voltage |
: |
220V AC /24V DC |
|
Power |
: |
32KW |
|
Air consumption |
: |
300NL/min |
|
Air pressure |
: |
6 bar |
|
Edge cutting |
: |
2×10mm |
|
Safety standard |
: |
Design according the safety standard of China |
▼ Part 2,CHM-A4-4 ream packaging machine
|
Paper Width |
: |
Gross width:310mm ;net width :297mm |
|
Ream packing high |
: |
Max 55mm ; Min 45mm |
|
Packing roll diameter |
: |
Max.1000 mm ; Min.200mm |
|
Packing roll width |
: |
560mm |
|
Packing sheets weight |
: |
70-100g/m² |
|
Packing sheets grade |
: |
high-grade copy paper, high-grade office paper, high-grade offset paper etc. |
|
Design speed |
: |
Max 50 reams/min |
|
Operation Speed |
: |
Max 34 reams/min |
▼ Part 3,Box wrapping machine
|
Packing Paper Width |
: |
Gross width:310mm';net width :297mm |
|
Box machine specification |
: |
5 packages/box; 8 packages/box; 10 packages/box |
|
Carton specification (Reference) |
: |
430mm*315mm*300mm(10 packages) /315*220*300mm(5 packages) |
|
Packing sheets grade |
: |
high-grade copy paper, high-grade office paper |
|
Design speed |
: |
Max 5-10 boxes/min |
|
Operation Speed |
: |
Max 5-7 boxes/min |

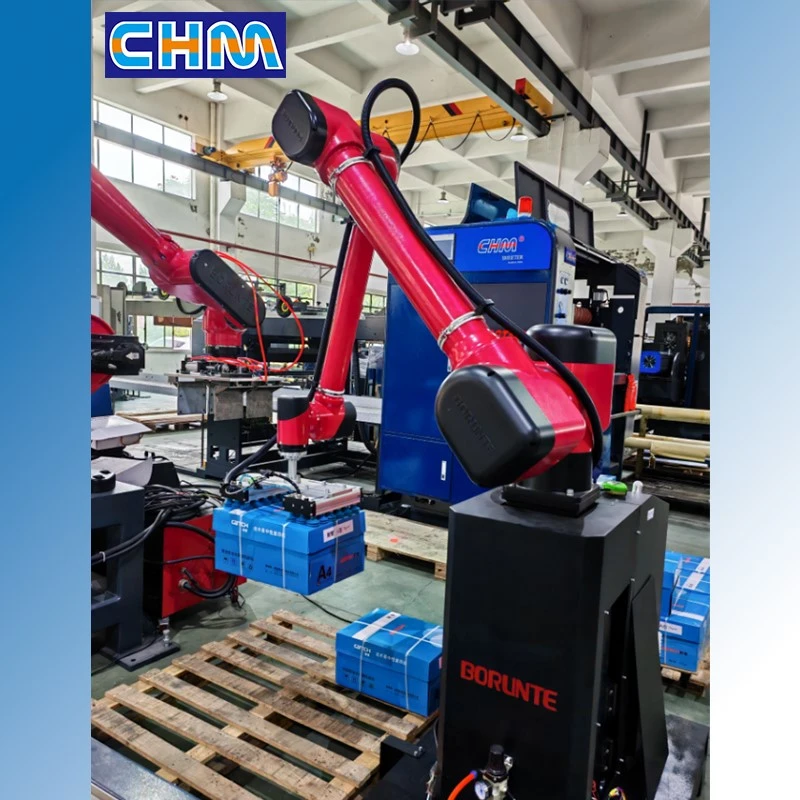

▼ Part 4 robot stacking
Packing specification of stacked cartons:
- A4 paper specification: suitable for 5 reams / 8 reams / 10 reams per box.
- A3 paper specification: suitable for 4 reams / 5 reams per box.
Successful Clients's cases
CHM A4 Machine project preparation

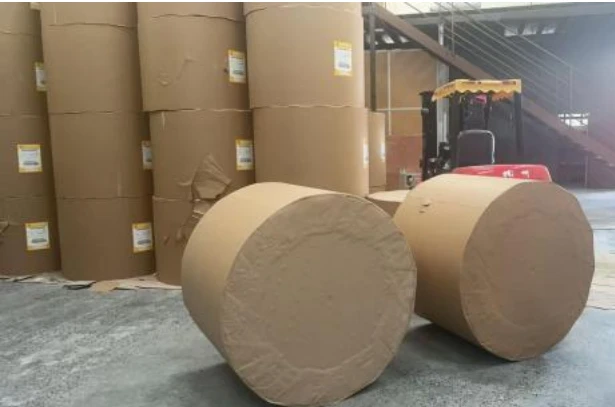

1.copy paper jumbo rolls (845MM – 850MM)
2.jumbo rolls ream packaging paper

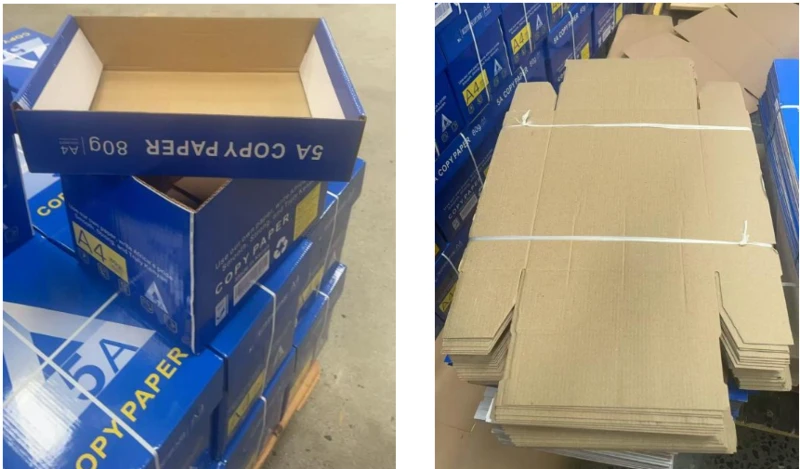

3. cartons for box wrapping
4.Carton Strapping Machine (Including Straps)
Product details
unwinding stands
|
1) Machine Type |
2 rolls loaded unwind stand *2sets plus (shaftless and hydraulic floor pickup system) |
|
|
2) Diameter of the paper roll |
Max. Ф1500mm |
|
|
3) Width of the paper roll |
Max. Ф850mm |
|
|
4) Paper rack's material |
Steel |
|
|
5) Clutch device |
Pneumatic Braker and control |
|
|
6) Clip arm's adjustment |
Manual adjust by oil pressure |
|
|
7) Paper core demanding |
3"(76.2mm)or 6"(152.4mm) or according to the client's need |
High precision cutting knife system
A-3 Type: High precision cutting knife system
|
1) Upper and lower knives are rotary make the cutting accuracy is very precision. |
|
2) Anti-curve device Include one set of square bar and steel wheel. When the curve paper through paper edge unit that can adjust the paper square and let it flat. |
5 sets slitting knives
Upper slitting knife take by air pressure and spring. Lower knife connect with bear drive and move with spring. The upper and lower round knife is made by SKH. The lower slitting knife and drive with in-phase belts. The lower slitting knife is 5 groups, each group have two knife edge.
Paper collecting system
A-5 Type: Paper collecting system

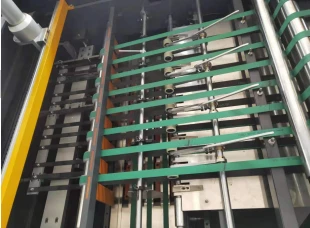

1) Automatic device for paper stack up and down
2) Jogging device and clap paper tidy. Control by air vat, when design
sheet, the cylinder up and down by cut paper bar. After transport paper
to belt, transport to the pack table cross.
A4-4 Model machine drawing
FAQ
FAQ
1: How to choose the suitable machine model?
Answer: We have different machine models,which mainly depend on your monthly output requirement.The monthly capacity is 200 tons,400 tons,500 tons and 600 tons respectively.
2: How can I purchase suitable paper jumbo rolls?
Answer: Normally we use two sizes: 845–850 mm and 1055–1060 mm.
3: This is my first time doing the A4 paper business. What services can you provide?
Answer: We will provide the most suitable A4 paper cutting solution based on your requirements.We also offer free machine installation and commissioning services.Our CHM engineers will train your staff on proper machine operation.
4.Do you have more higher level capacity machine?
Answer: Yes,We have different machine models.We have larger production capacity models,the machine can meets client's high output needs.
5.Is this whole production line fully automatic?
Yes.This is fully automatic A4 size copy paper cutting and packaging production line.This entire production line including 4 parts.including paper cutting part,ream packaging part,box wrapping part and robot stacking.
6.what size does this machine can cut?
This A4 size paper cutting and packaging machine can cut A3 and A4 size.
Hot Tags: a4 paper cutting and packaging production line, China a4 paper cutting and packaging production line manufacturers, suppliers, factory, A4 cutter sheeter, roll cutter machine, cut size ream wrapping machine, A4 paper box packing machine, A4 paper plastic wrapping machine, A4 size cutting machine
