Product Introduction
CHM-A4DB A4 box wrapping machine.Integrates the highly advanced electronics automation,PLC control system and mechanical automation.All in one paper conveying,ream paper collection,ream paper counting and collection,automatic loading,automatic covering,into packed boxes.
Product parameter
|
Packing Paper Width |
: |
Gross width:310mm';net width :297mm |
|
Box machine specification |
: |
5 packages/box; 8 packages/box; 10 packages/box |
|
Carton specification (Reference) |
: |
430mm*315mm*300mm(10 packages) /315*220*300mm(5 packages) |
|
Packing sheets grade |
: |
high-grade copy paper, high-grade office paper |
|
Design speed |
: |
Max 5-10 boxes/min |
|
Operation Speed |
: |
Max 5-7 boxes/min |
|
Packing condition |
: |
Be qualified A4 paper(297mm*210mm), the ream paper height 45mm-55mm; carton specifications qualified. |
|
Driving |
: |
AC servo driving |
|
Main power supply |
: |
3*380V /50HZ |
|
Voltage |
: |
220V AC /24V DC |
|
Power |
: |
(appro) 16KW |
|
Compressing air consumption |
: |
(appro) 300NL/min |
|
Air pressure |
: |
4.5bar |
CHM-A4DB full automatic production line
Roll cut into A4 oaoer sheets→ream conveying→ream counting&collection→automatic box loading→automatic conveying→automatic covering→A4 paper boxes

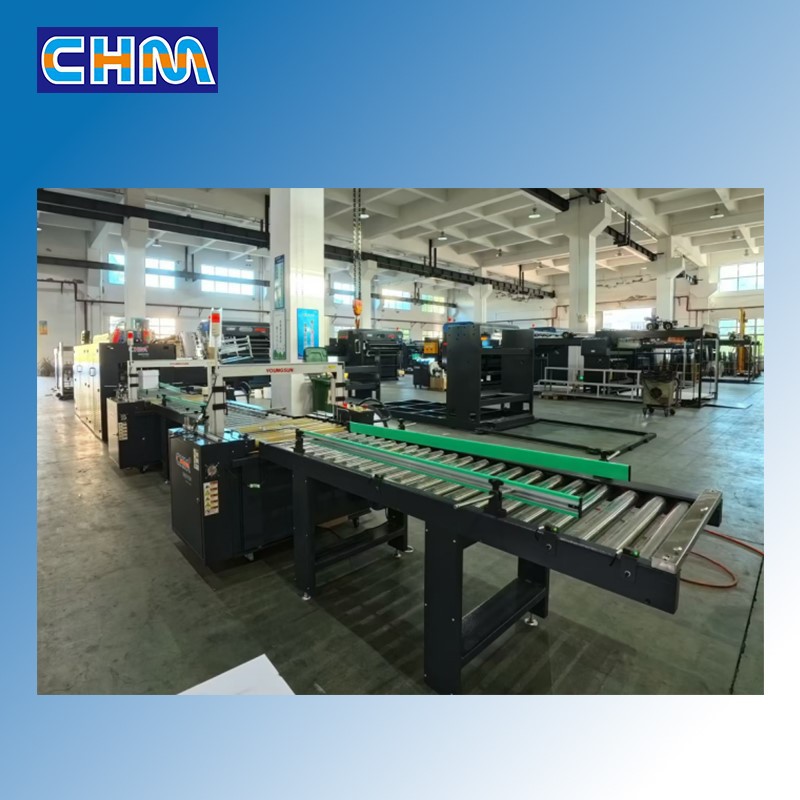

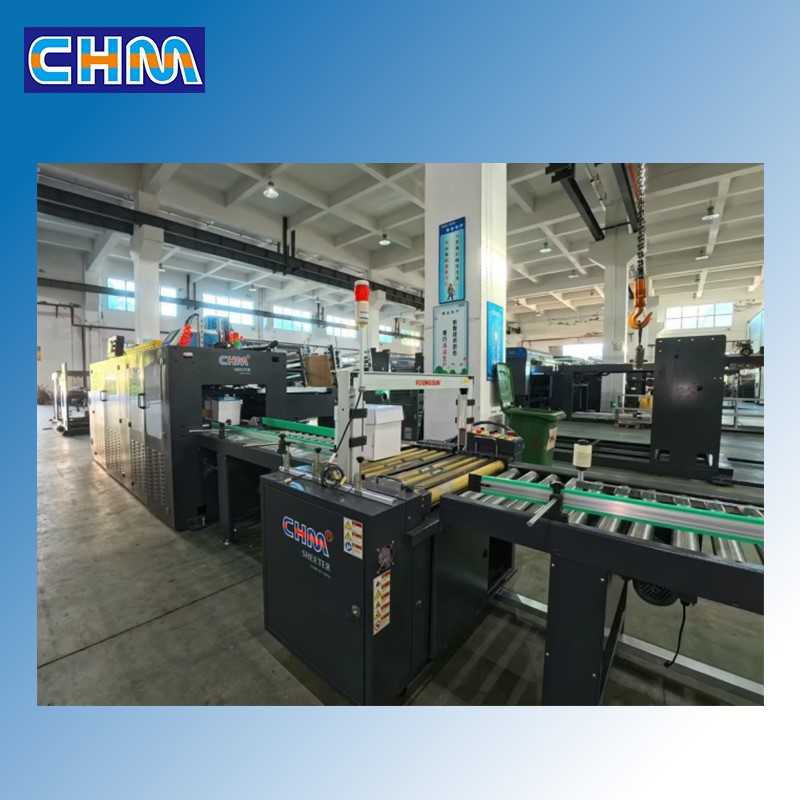

Product display
FAQ
1.What after-sales services can you provide?
Engineers available to service machinery overseas, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support.We will do our best to solve problems for users.
2.What is the specification of each box of the packaging machine?
We have different box specification. 5 packages/box,10 packages/box.
3.Is the entire operation process automatic?
Yes,this is an automatic production line.The steps such as ream paper conveying, collection, counting and packing are all completed automatically.
4.In which fields are the company's products mainly applied?
CHM machines are used widely.They are mainly applied in paper mills, printing houses, paper processing factories and the packaging industry.
