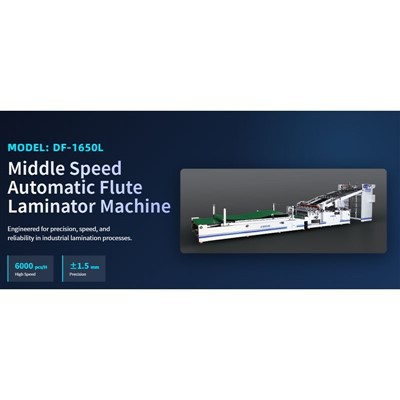

Corrugated Boards Automatic Flute Laminator Machine

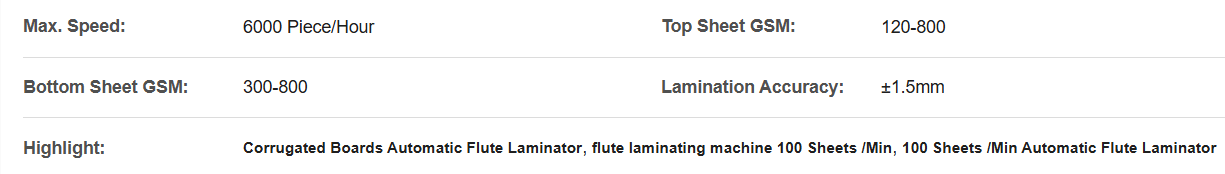

1. High-Throughput Production: Capable of up to 100 sheets per minute (6,000 sheets/hour), providing consistent output for high-demand production lines.

2. Sheet Size Flexibility: Supports maximum sheets of 1450 × 1100 mm and minimum sheets of 350 × 350 mm, accommodating a wide range of product dimensions.

3. Material Range: Top sheet thickness 120–800 g/m² and bottom sheet 300–800 g/m², suitable for light, standard, and heavy-duty lamination tasks.

4. Precision Lamination: Achieves ±1.5 mm registration accuracy, ensuring tight alignment of top and bottom sheets, critical for multi-layer boards.

5. Dynamic Mechanical Design: Incorporates patented mechanisms in the mechanical and aligning systems, providing smooth sheet feeding, precise layer positioning, and reduced operational vibration.

6. Versatile Lamination: Handles cardboards, greyboards, and corrugated sheets with single, triple, or quintuple layers, supporting a wide spectrum of packaging, display, and industrial applications.

7. Heavy-Duty Construction: Built with high-tensile, precision-engineered components that ensure long-term stability, durability, and continuous production with minimal downtime.

8. Low Maintenance Drive System: The upgraded transmission system reduces wear, lowers noise, and simplifies operation, keeping maintenance costs and downtime to a minimum.

9. Reliable Sheet Feeding: Front-top leading-edge suction feeders for both top and bottom sheets guarantee stable feeding and eliminate the need for constant adjustments, even when changing sheet sizes.

10. Uniform Adhesive Application: Advanced glue roller system ensures consistent coating thickness, prevents overflow, and provides strong, durable lamination for multi-layer boards.

11. Optimized Pressing System: Adjustable press rollers allow individual or multiple-layer pressing, ensuring flat, smooth, and uniform laminated boards.

12. Automated Collection System: Features vibrating loose-sheet stacker with high-speed elevator, enabling efficient, neat collection of laminated boards, improving workflow efficiency.

13. Energy Efficient: With 14KW power consumption, the DF-1450S balances medium-speed production with controlled energy usage, keeping operational costs manageable.

14. User-Friendly Interface: Equipped with HMI control, alarms, and PLC monitoring, the machine tracks production conditions, detects errors, and stores operational records for improved process control.

15. Enhanced Operator Safety: Safety stoppers and guards protect operators during high-speed lamination, while automated monitoring prevents errors and ensures safe operation.

16. Quick Material Changeover: E-type holder plates and conveyor adjustments allow rapid changeover between different sheet sizes, reducing idle time.

17. Multi-Layer Precision: Unique alignment mechanism ensures synchronized lamination, preventing layer misalignment common in conventional laminators.

18. Broad Applications: Ideal for packaging boxes, puzzles, partitions, display boards, industrial inserts, promotional materials, and specialty laminated products.

19. Stable Long-Term Operation: Reinforced frame and mechanical system minimize vibrationsand maintain consistent lamination quality over extended production cycles.

20. Differentiating Advantage: Compared to other 100-sheets/min laminators, DF-1450S offers patented alignment mechanisms, low-maintenance drive systems, and wide sheet/material compatibility, making it highly reliable for industrial-scale, precise lamination.

Sheets are fed via precision suction feeders, and adhesive is applied using high-accuracy glue rollers. The sheets pass through the aligned pressing rollers, where synchronized laminationensures uniform bonding. Finally, the laminated boards are collected automatically using the vibrating stacker and high-speed elevator, ready for downstream processing or packaging.
